Alicat 20 sccm mass flow meter [PID26]

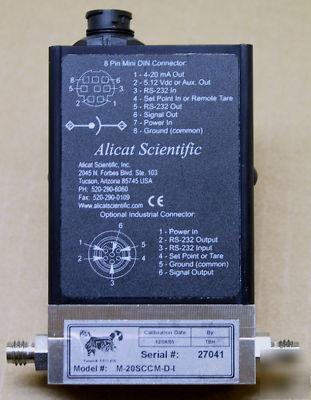

1. Quantity 1: 20 SCCM Alicat Mass Flow Meter; Model #: M-20SCCM-D-I; Serial #: 27041
2. Quantity 1: Right angle, 8-pin circular mini-din connector cable with 1 male mating connector. The opposite end is blunt cut with color-coded wires. This cable is typically used when overall device height is critical.
3. Quantity 1: Operating manual for the Alicat Mass Flow Meter (Original factory bound manual)

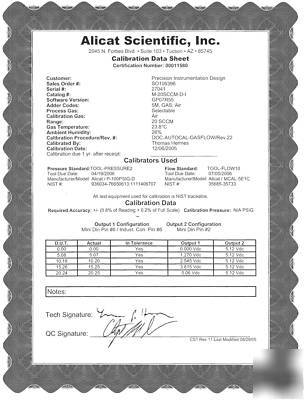

4. Quantity 1: Certificate of factory calibration

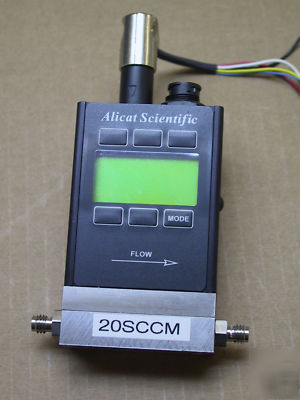

This is a 20 SCCM mass flow meter.
Only ever used for Nitrogen and Clean Dry Air
Only a few hours (fewer than 40) of total use in a test fixture.
For information, visit: http:// /products/gas-flow-meter.php
Digital or analog mass flow meters, regardless of manufacturer, serve a single purpose...to measure the flow of gases through a system. Mass flow meters must be accurate, versatile, dependable and cost effective.
Alicat M series mass flow meters were designed to be used as a stand-alone device. With the native display, a user can easily change the configuration of the meter without the need for computers, complicated software or scripts.
Alicat M series mass flow meters can be configured with an accuracy spec of up to +/-(0.4% of reading + 0.2% of full scale) with a high-accuracy calibration. Standard calibrations are rated at +/-(0.8% of reading + 0.2% of full scale)
M series mass flow meters are available in any flow range from 0.5SCCM through 1500SLPM. They are equipped with multiple analog outputs in addition to the RS-232 digital output. The M series meter can also be equipped with an Alicat 9V battery pack to make a stand alone secondary calibration standard or flow verification meter.
With a response time of under 10 milliseconds, Alicat mass flow meters respond more than twice as fast as your eye can blink.
The M series mass flow meter has a footprint of 2.37'X1.050' through 4.00'X1.60' making it easy to integrate into systems or to use as a stand-alone calibrator.
Alicat's patented technology allows its mass flow meters to have very few moving parts. All of the internal components are fixed in place resulting in very little physical change inside the mass flow meter. Little physical change in the flow cavity means higher rates of consistency and repeatability. Alicat M series mass flow meters have a repeatability of +/-0.2% of FS
There are currently over 22,000 Alicat products in service around the world. Alicat mass flow meters are being used in processes like leak detection, flow monitoring and atmospheric testing.
All Alicat Scientific mass flow meter calibrations are NIST traceable.
Features and Benefits of Alicat M series mass flow meters:
Mass Flow Meter DisplayMeasured Parameters
* All measured parameters are displayed in real time on the digital display. Any measured parameter can be brought to the center of the screen. Remote displays are also available. Versatility
* Multiple process measurements in one device to reduce the need for other measurement devices.
* Response speed can be adjusted by the user to suit the application
* Multiple analog & digital outputs to make communicating with the device easier and less costly.
* 100:1 Turndown ratio allows the flow meter to measure flow at 1/100th of its full scale rating
* 30-Gas Select on all units reduces inventory requirements
* The max flow rate for the mass flow meter does not change, regardless of gas!
* "Tare" feature allows the user to zero the unit at any time
* Customizable units of measure for added ease of use
* Optional Remote Display allows for panel mount of the display with full push-button control in embedded applications
30 factory installed, user selectable, gas calibrations:
* RS-232 output of all measured parameters
* PROFIBUS compatible communication standard
* Choice of analog output of main parameter
* 0-5Vdc, 1-5Vdc, 0-10Vdc, or 4-20mA
