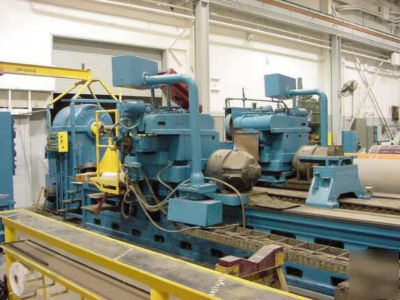

Farrel 2-whl traveling-hd swing rest roll grinder 24271
48"/56" x 378"/440" FARREL TWO-WHEEL TRAVELING-HEAD
New 1956/1965, Serial No 5A1601&65A4844,
Roll Grinding Diameter, On Centerline.. 48"
Roll Grinding Diameter, Above Centerline.. 56"
Distance Between Neck Rests............ 440"
Roll Face Ground, Maximum.............. 378"
Grinding Wheel Cross Travel............ 27"
Grinding Wheel Width, Standard......... 3"
Grinding Wheel Speeds, Range........... 700 to 1400 RPM
Grinding Wheel Surface Speeds, Range... 3700 to 7400 FPM
Workhead Spindle Speeds, Range......... 4.5 to 18 RPM
Wheel Longitudinal Feeds, Infinite..... .750 to 22 IPM
Concavity Of Roll On Diameter, Maximum. .400"
Crowning Of Roll On Diameter, Maximum.. .400"
Grinding Wheelhead Spindle Motors...... 15 HP (EACH)
Headstock Motor, Horsepower............ 25 HP
Floor Space Required, L x D............ 56' x 14'
Overall Height......................... 7'
Weight, Approximately.................. 125500 LBS
PRICE: F.O.B. OUR WAREHOUSE........... $300,000.00
