Alarm lock trilogy T2 DL2700 26D electronic lock
Alarm Lock Trilogy DL2700 X 26D
Electronic battery operated digital lock.

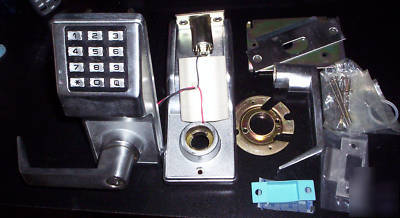

This is a used unit in good working condition (tested). Hardware appears complete save maybe a screw or two.
The 'override' key for the Schlage cylinder is missing, but not required for electronic operation, and can be rekeyed.
Installation/Programming Manual included.
* Door Thickness: Fits 1-5/8" to 1-7/8". Other thickness please consult factory.
* Backset: 2-3/4" (2-3/8" also available)
* Strike: 1-1/8" x 2-3/4" T strike & 1-1/4" x 4-7/8" ASA strike included.
* Latchbolt: UL Listed, fire rated 3 hours, 1/2" throw reversible.
* Power: 5 AA alkaline batteries (included); 150,000 cycles, typical.
* Keypad: All metal, 12 button. All functions programmed through keypad.
* Door prep: Standard ANSI A115 Series prep, modified by adding additional through-bolt holes.
* Compliances: Grade 1 heavy duty cylindrical lockset. UL listed To the 10C Positive Pressure Specification. FCC Certified. ADA compliant levers.
* Fingertip (keypad) programmable
* 2-wire remote override or key bypass
* Vandal proof all-metal keypads
* Full 2 year factoty warranty.
