6" w 18" l brown & sharpe 618 micromaster series ii sur
6" W 18" L Brown & Sharpe 618 MICROMASTER SERIES II SUR

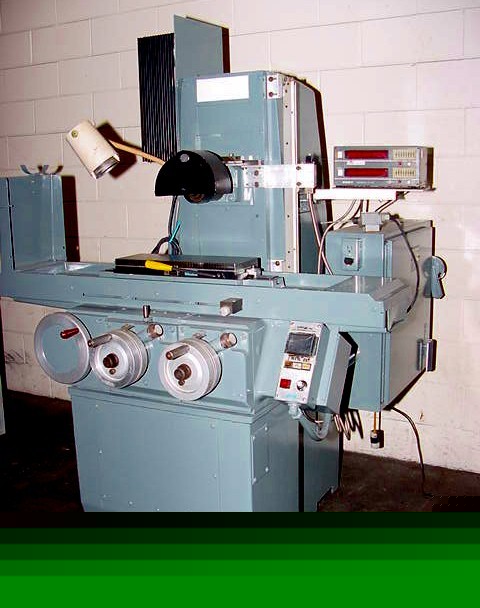

6" Width 18" Length Brown & Sharpe 618 MICROMASTER SERIES II SURFACE GRINDER, 2X DRO, FINE FEEDS Y/Z
6" x 18" BROWN & SHARPE #618 MICROMASTER "SERIES II"
PRECISION HAND FEED SURFACE GRINDER
HEIGHT OF WORK GROUND W/STD. 7" WHEEL ...... 15-1/2"
MAXIMUM LONGITUDINAL TRAVEL ................ 22"
MAXIMUM CROSS TRAVEL ....................... 7"
HANDWHEEL, HAS ADJUSTABLE DIAL GRADUATED
TO READ TO .................................. 0.0002"
FINE-FEED KNOB, ADJACENT TO THE HANDWHEEL ... 0.0001"
VERTICAL TRAVEL OF SPINDLE ................. 15-3/4"
HANDWHEEL HAS ADJUSTABLE DIAL GRADUATED
TO READ TO ................................. 0.0002"
FINE-FEED KNOB, ADJACENT TO THE HANDWHEEL
IS GRADUATED TO READ TO .................... 0.0001"
APPROXIMATE MACHINE WEIGHT ................. 2,500 LBS
APPROXIMATE FLOOR SPACE .............. 56"L X 62"D X 68"
"SONY" MODEL #LF-200 2-AXIS DIGITAL READOUT DISPLAY
"LOVEJOY" ELECTRONIC AC MOTOR CONTROL PROVIDING INFINITELY
6" x 18" "KANETSU" FINE-DIVISION PERMANENT MAGNETIC CHUCK
1.5 H.P. BROWN & SHARPE SUPER-PRECISION DIRECT DRIVE
FINE FEED KNOBS FOR VERTICAL & CROSS FEED HANDWHEELS
DUAL INCH/METRIC HANDWHEELS FOR CROSS & VERTICAL AXES
PRESENTLY WIRED FOR 3/60/460 VOLTS/5 AMPS
THE MACHINE WAS USED IN AN APPRENTICE TRAINING SHOP OF A
FORTUNE 500 COMPANY. THIS MACHINE HAS LOW HOURS OF USE,
AND HAD A VERY GOOD PREVENTATIVE MAINTENENCE PROGRAM.
