Tektronix TDS524A 500MHZ color digitizing oscilloscope
Tektronix TDS524A 500Mhz Color Digitizing Oscilloscope
For Sale is a Tektronix TDS524A 500 Mhz 2 Channel Color Digitizing Oscilloscope.

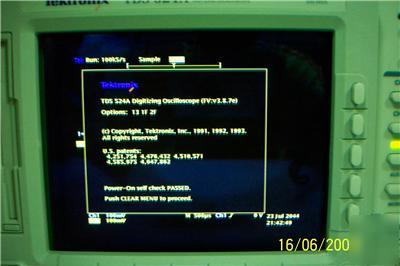

Guaranteed to pass power up tests.
This scope is in Very Good working and Very Good cosmetic condition.
There are some scratches from normal wear but nothing out of the ordinary. Scope comes with power cord front cover and options listed below.
The TDS 524A is the world standard for digitizing oscilloscopes. Applications for this unit include Digital Design and Debug, Analog Design and Debug, Manufacture Testing & Research. Features include: Color Display, 500 MHz Bandwidth, Sample Rates to 500 MS/s, 2 channel input Pulse Width, 2 ns Glitch, Runt, Pattern and State Triggering 1 mV to 10 V/div Sensitivity, Infinite and Variable Persistence Displays Record Lengths to 50,000 Points 8-Bit Vertical Resolution and up to 12-Bit resolution with Hi-Res Acquisition Mode 1% Vertical Accuracy, FFT, Integration and Differentiation, 25 Automatic Measurements, VGA-Output to External Monitor, Waveform Pass/Fail Testing
This unit also comes with the following Options:
Opt. 13: (TDS 520A/540A only) Add RS 232C and Centronics hardcopy interfaces.
Opt. 1F: (TDS 520A/540A only) Add 3.5 inch floppy disk drive.
Opt. 2F: (TDS 520A/540A only) Extended waveform math; FFT, Integration, Differentiation.
