New thermal receipt printer retail pos and esc
Thermal Receipt Printer Retail New POS and ESC
If you're a POS user looking for an entry-level thermal printer that benefits from economical running costs AND high quality, this mini receipt printer is the machine you're looking for.
Lower cost does NOT mean lower quality in this case. This printer benefits from a top notch print mechanism as well as easy to use drop-in paper rolls and low maintenance, user friendly operation.
* Compatible with ESC and POS commands
* Takes drop in standard size paper rolls
* RJ-11 port for cash register connection
* Reliable and user friendly
Ideal for small scale operations in the retail or hospitality industry, this is an excellent thermal printer for general Point of Sale applications
* Print method: direct thermal
* Print speed: 50mm/sec or 14 lines/sec
* Print density: 38 dots/line or 8 dots/mm
* Fonts: International, Chinese, Korean
* ASCII font: 12 x 24 dots (1.25 x 3.00mm)
* Graphic font: 24 x 24 dots, 3.00 x 3.00mm
* Print commands: ESC/POS print commands set
* Paper type: direct thermal; printing paper
* Max paper roll diameter: 50mm
* Effective print width: 48mm
* Paper width: 57.5mm 0.5mm
* Paper thickness: 53 - 60 g/m
* Over-heat protection switches on at: 60 C
* Serial port interface: Dsub 25 pin female connector, 9600bps baud rate, none parity, 8 data bits and 1 stop bit. Supports RTS/CTS & XON/XOFF protocols
* Parallel port interface: Dsub 25 pin male connector, 8 bits parallel, supports BUSY protocol
* Cash drawer port: DC 12V/1A, 6 wire RJ-11 socket
* USB compatibility: USB 1.1 (adapter require, not included)
* Operating temperature and humidity: 0 C to 45 C, 10 - 80%RH
* Storage temperature and humidity: -10 C to 50 C, 10 - 90% RH
* Power input: 100V AC - 240V AC, 50 - 60Hz
* Power output: +8.8V DC/3.5A
* Dimensions: 185 x 116 x 93mm

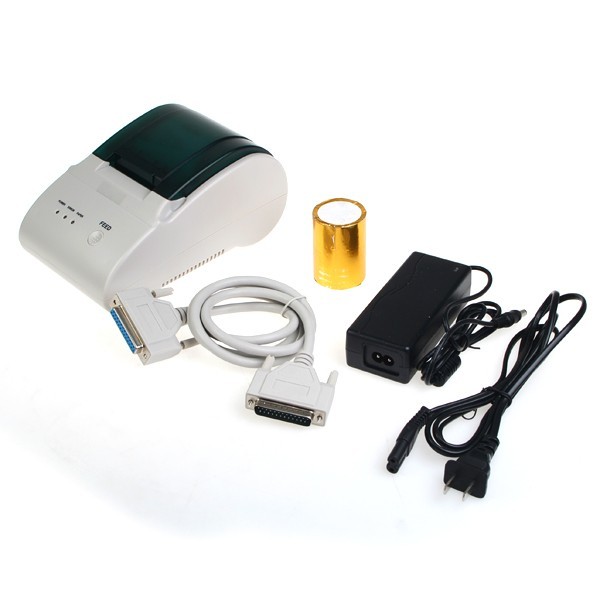

The mini thermal receipt printer is brand new and boxed and includes:
