Heald/cin-mila "cinternal" cnc-controlled int grinder

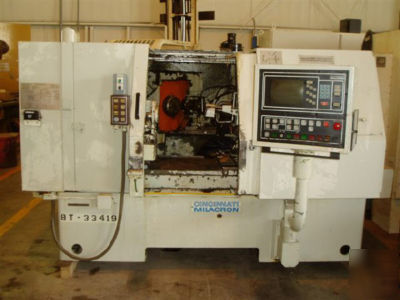

#3EF700G HEALD/CINCINNATI-MILACRON "CINTERNAL"
CNC-CONTROLLED INTERNAL GRINDER
New 1985, Serial No 913527P84-0112, Model 3EF700G,
Acramatic #700G CNC Control w/CRT (Pendant Mounted)
2-SPINDLE ARRANGEMENT: permits matching wheel sizes
to multiple ID's, OD's and Faces for Optimum Results
Chuck Type Workholding Arrangement
Behind Wheel Dresser - Coolant System w/Seperator
Swing Over Table, Maximum............... 30"
Swing Inside Coolant Guard (Standard)... 24"
Swing w/Workhead @ 90-Degrees........... 13"
Grinding Stroke, Maximum................ 22"
Table Travel, Maximum................... 26"
Bridge Longitudinal Adjustment (Z-Axis) 8"
Work-Slide Travel (X-Axis).............. 11"
Wheel-Slide Travel...................... 14"
Wheelhead Longitudinal Adj (Front)...... 4"
Wheelhead Mounting Position Span........ 10.6" to 16.6"
Workhead Flange to WheelSlide, Min...... 31"
Workhead Flange to WheelSlide, Max...... 39"
Workhead Load Capacity @ 6" CG.......... 1000 LBS
Wheelhead Swivel (Front), Maximum....... (-) 15-DEGREES
Wheelhead Swivel (Rear), Maximum........ (-) 10-DEGREES
Workhead Swivel Angle, Maximum.......... 45-DEGREES
Workhead Spindle Speeds, Range.......... 30 to 999 RPM
Feed Rates, Range....................... 0 to 99.9 IPM
Power Rapid Axis Speed.................. 400 IPM
Floor Space Required, L x D............. 16'1" x 10'1"
Weight, Approximately................... 16950 LBS
