First responder portable hazmat decon shower system

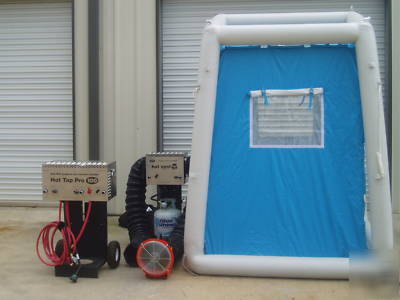

FSI DAT2020S First Responder Portable Hazmat Decon shower system complete. Fully functional. Used for FD instruction/demonstration only.
Heater units have a few bumps and dings from transport and setup at demos but function 100%. Shower unit has a few marks from being set up at demos but is free of holes and works 100%.
Original retail price of system is $10,650 if purchased new.
Designed for maximum portability and rapid, 60-second setup.
Approx. 7 W X 7 L X 8 H, 50 sq. Ft., 80 lbs.

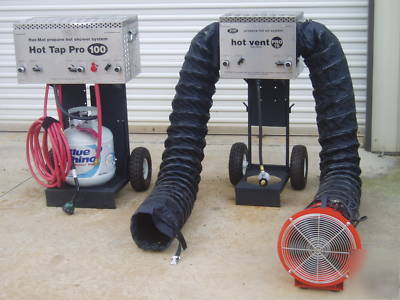

Includes air and water heating systems.

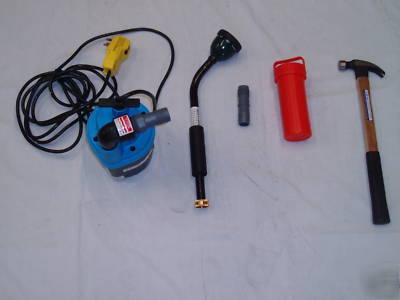

* Hazmat Decon Shower System w/ 7 spray heads and spray wand

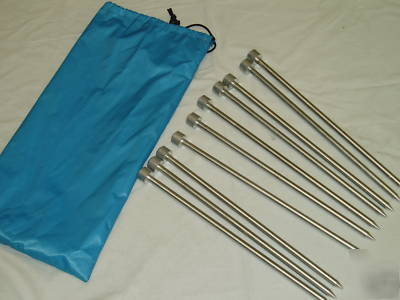

* Bag, stakes, and accessories
* Zodi 5170 Water Heating System
*propane tanks and air inflation unit not included
Air pressure internally once inflated = 4.3 psi (0.3 bar)USA Federal Standard FS
# 191 5041/5102/5134/5970 Test Method Structural Test resultsTotal Weight (g/m2)
1055Thickness (mm) 0.90Cut strip tensile strength (lbs. /in.) Warp = 450 - Weft =
404Elongation (%) Warp = 30 - Weft = 47Tongue tear (lbs.) Warp = 87 Weft = 100Adhesion
(lbs. /in.) Warp = 9.4 Weft = 8.9Density = 30 X 24.5 Multiple optional accessories available
inclusive of air and water heaters, air coolers, elevation grids, waste water pumps, etc. available.

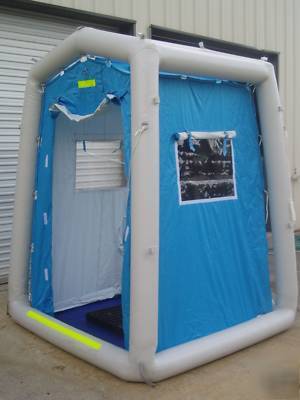

The DAT 2020S comes equipped as standard equipment with an integrally attached ground floor
that will hold up to 100 gallons (400 liters) of water (with an 8"/20 cm berm approx.) before
requiring pump out, 2 roll up windows one on each side, 1 skylight, full closure slip in and out
dirty entry/clean exit doors on each end, high pressure air inflation/deflation valve, one air inflation
hose w. safety cord, pressure relief valve, 4 stainless steel stakes and ground anchor points, 1
HVAC Hanging Duct, Tie Down Ropes and 4 D-rings to tie off to, Repair kit, manual, carry bag, 2
upper air vents, and hammer. All canopy walls are velcro d to the floor air berms for air lock, and
reflective striping is found on the upper air vents above doors and on entry and exit air berms.
Units can attach to a second shower or FSI Shelter.
The DAT 2020S also comes complete with a qty. of 7 spray nozzle heads (one overhead) and a
single 5 (150 cm) length of coiled "/13 mm hose with an attached multiple function spray gun
with spray patterns and flows meant to gently yet thoroughly drench and decon victims. Shutoffs
and quick disconnects supplied with every group of shower heads and trigger gun. Flows per
shower head and per spray gun = approx. 1 gpm/4 lpm optimum and dependent on water
volumes available. Simply inflate the unit and plug into a water supply. DAT 2020S offered with
1 " (19mm) high pressure 300 psi (20 bar) GHT threaded inlet hose other fittings available
as specified. Decontamination can commence in less than 1 minute.
For questions or more information please contact Hazard Control Technologies, Inc, at (***)-719-5112
