Welder generator thermal arc stick to mig unit VS212
The item up for sale is a Thermal Arc VS212 Portafeed cc/cv semiautomatic solid state controlled wire feeder, one of Two up for sale these machine have nether been used, if you have a arc welder up to 400 amps DC and you wish to turn it into a mig welder just using the arc welding leads this is the machine you require. This machine is excellent for using with site diesel driven dc welders to give a mig option.
* maximum input current 8AMPS
* Wire speed range (dependant on arc voltage) 50-800 IPM (1.27-20.32MPM)
* max wire spool capacity 20Kg
* welding current 425 A at 60% Duty cycle
* welding gun inlet size (std) Tweco style 4 16mm Nominal
* Maximum shielding gas inlet pressure 100psi
* Degree of protection IP23C

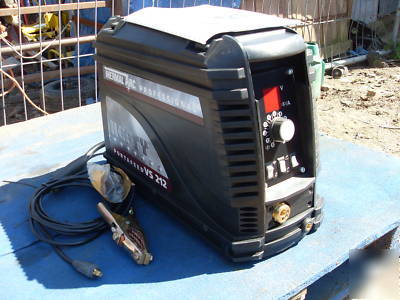

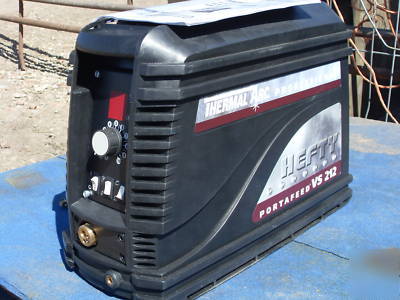

The Portafeed VS 212 IS A PURPOSE BUILT, PORTABLE, POWERFUL cc/cv solid state controlled voltage sensing wire feeder. Its rugged injection molded fiberglass reinforced flame retardant, polypropylene case represents the latest in high strength, super tough, light weight materials.
A recessed control panel protects the controls which include a power switch, inch purge switch, gun trigger hold and digital display for monitoring wire speed, amps, volts, arc time and meter hold functions. A lifting eye, Mig gun holder, removable voltage sensing lead and ressesed carrying handle are just some of the refined external features of the portafeed vs212.

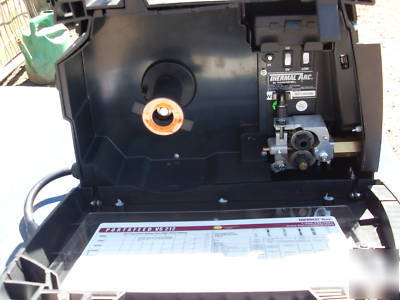

But the features that truly set this machine apart are the aluminium cast machined feed head tension arm combined with quick change drive rolls (geared top and bottom) and the unique changeable integrated Mig gun cartridge system. This system allows the operator to connect any style of mig gun to the wire feeder without the use of external adapters which can break off or restrict wire feeding.Finaly all printed circuit boards are potted and sealed to be enviromentally toughened from metalic dust, dirt and moisture costly down time will be a thing of the past when the portafeed is on site.
