Tb woods external dynamic brake assembly WDB411

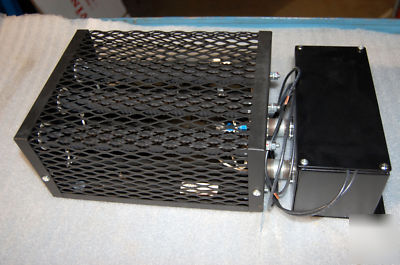

You are viewing a TB Woods external dynamic braking system that is an 11 kilowatt peak unit. It is made to work for 460V and greater then 10HP motors. Here is the info from TB Woods:
WDB211/WDB411 External Dynamic Brake Assembly
The WDBxxx assemblies are designed to increase the capacity of the WFCHT to absorb the regenerated energy from a motor during rapid deceleration or overhauling loads. The WDB211 is designed to connect to any 230 Volt WFCHT Inverter and provide 10 horsepower of braking capacity at a 10% duty cycle. Similarly, the WDB411 is intended for use on 460 volt models. For capacities greater than 10 horsepower, units can be connected in parallel.
