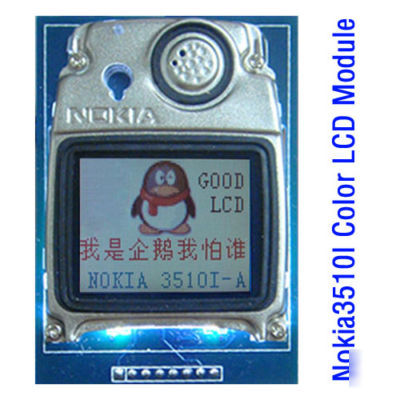

Nokia 3510I Color STN (CSTN) LCD Module
Please download the datasheet for 3510I Module
1. Power Supply 3-3.6V; bear in mind that can not be used 5V
2. Data port level: In theory, I can not let the data level of more than 3.6V, if the 5V microcontroller must use to connect data bus IO, due to an internal voltage clamp LCD used can be used, but it really is not regulated . Experiment to do sample tests, when the bulk product to do, in order to improve product stability, better to think of ways to control the MCU data bus on the high voltage of 3.3V.
(AVR's IO output of high ability, LCD internal voltage clamp data bus capacity is limited, when using the AVR-driven Be sure to use the 3.3V power supply to the microcontroller. If you must use the 5V supply of the AVR, need to using two resistors on data wire to split voltage )
