New omega flsc-amp low level amplifier flscamp

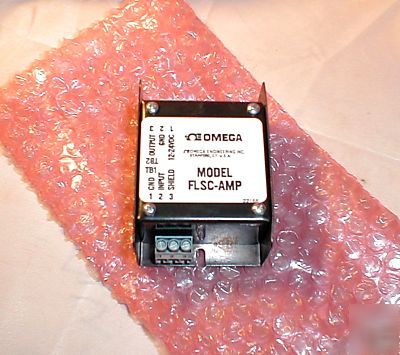

OMEGA FLSC-AMP Low Level Amplifier FLSCAMP
* The OMEGA FLSC-AMP amplifies the low level signals from the magnetic pickup of gear teeth or flow transmitters by a factor of more than a hundred times to drive any OMEGA ratemeter, counter or controller. It is mounted in a rugged 2 x 3" metal housing with screw terminals for easy installation.SPECIFICATIONS: Power Requirements: 11 to 26 Vdc; 30mA Maximum. /Input Characteristics: Input Impedance: 1500 ohms. Input Frequency: 0-15 KHz. Input Voltage: 0.020 to 50 V. /Output Characteristics: Open Collector with internal 2700 ohms pull-up resistor to supply voltage. 100 mA Maximum sink to 1 v or less. /Temperature Range: 32 to 140 0 F (0 to 60 0 C).
* Ultra Low Speed to 15 kHz Operation
* 100 mA Current Sinking Output
* 11 to 26 Vdc Power Supply Range
