Horizontal mill milling overarm support parts bushing

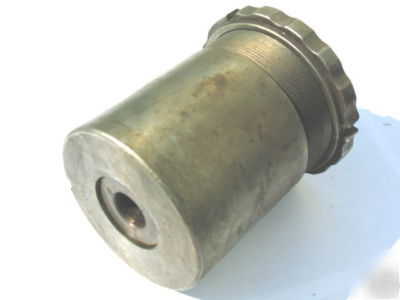

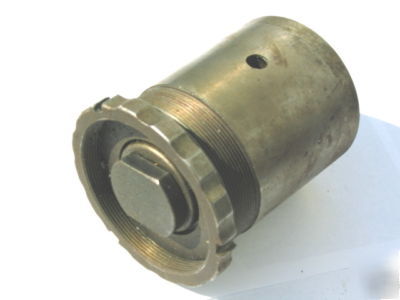

Item ................................. This is a brass bushing spacer mounted inside a steel tapered sleeve which mounts inside an Over arm support for a milling machine
Manufacturer ................ Unknown But it is probably from a Cincinnati or a Milwaukee mill
Model .............................. It says MO 1 and 3704 on it
Size .................................. The brass body is 1-7/16" outside diameter with a 45/64" Hole in it. The hole does go all the way thru but there is a bolt of some type in the one end of the hole right now. The right hand threads are 3" diameter and 16 tpi. The threads look to be good shape, the spanner nut starts on the threads but not very far and it starts to turn hard, might need to run a tap through it to clean up any little burrs, or maybe it just needs to be cleaned up a little.
Length overall is 4-1/4" The large outside diameter of the tapered sleeve measures 3-1/4" equipped with a 1/4" keyway drive slot
Condition ........................ Nice used
