36" thrt 12" h doall 36-3 vertical band saw, hydraulic

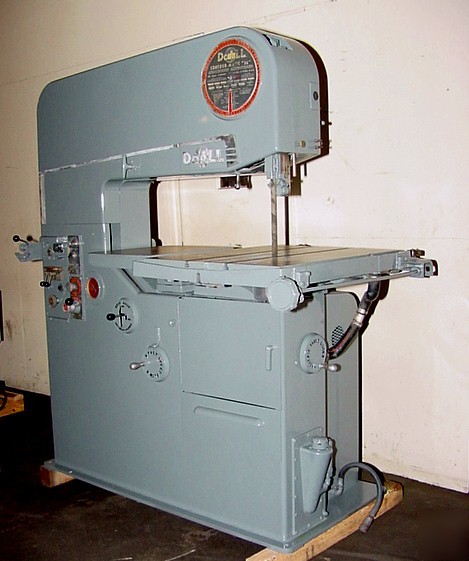

36" Thrt 12" H DoAll 36-3 VERTICAL BAND SAW, Hydraulic
36" Throat 12" Height DoAll 36-3 VERTICAL BAND SAW, Hydraulic Table Feed, Blade Welder
36" DOALL VERTICAL BANDSAW W/HYDRAULIC TABLE FEED
MODEL: 36-3, S/N:126-59215, NEW: 1959
THROAT CAPACITY.................................. 36"
WORK HEIGHT...................................... 12"
BAND WIDTH............................ 1/16" - 1-1/4"
TABLE SIZE............................. 24" X 30-1/2"
TABLE STROKE..................................... 12"
WEIGHT CAPACITY OF TABLE................... 1000 LBS.
EXTENSION TABLE SIZE................... 16-3/4" X 20"
INFINITELY VARIABLE HYD. FE0D RANGE......... 0-12 FPM
INFINITELY VARIABLE HYD. FEED FORCE RANGE.. 0-350 LBS
TABLE TILT................ 45 DEGREES R, 10 DEGREES L
BLADE SPEED RANGE INFINITELY VARIABLE.... 25-6000 FPM
BAND LENGTH 2 WHEEL............................. 125"
BAND LENGTH 3 WHEEL............................. 174"
APPROXIMATE FLOOR SPACE............. 72" X 48" X 80"H
APPROXIMATE WEIGHT......................... 3,000 LBS
DOALL DBW-1A BLADE WELDER GRINDER & SHEAR
* INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE *
