Warner electric / seco quadraline dc drive #Q7042-1
Warner Electric / Seco Quadraline DC Drive #Q7042-1

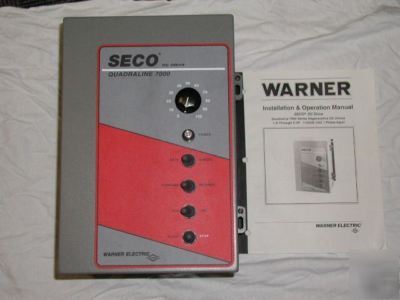

Unused surplus part in original box w/ manual
* The Quadraline 7000 Series is a DC motor speed controller with power-conversion components which convert incoming AC line voltage into adjustable DC voltage in order to control a conventional shunt wound or permanent magnet DC motor.
* External Signal Model - includes power unit, control logics , isolated signal follower accepting 4-20mA, 1- 5mA, 0- 10 VDC, 0- 14 VDC, or 0- 100 VDC reference signal inputs, and NEMA 4/12 enclosure with operating devices: Start-Stop switch, Run-Jog switch, Forward-Reverse switch, Auto-Manual switch, single turn Speed Setting Potentiometer, and Power Light.
* 115 V, 1 Phase: 1/4 - 1 HP
* 230 V, 1 Phase: 1/2 - 2 HP
* AC Line Input Voltage / Frequency: 115 or 230 V 10%, 50/60 Hz 2 Hz Single Phase
* 115 VAC Supply Armature Voltage: 0 - 90 VDC
* 115 VAC Field Voltage: 50/100 VDC
* 230 VAC Supply Armature Voltage: 0 - 180 VDC
* 230 VAC Field Voltage: 100/200 VDC
* Max. Load Capacity: 150% for 1 min.
* Line Protection: Fuses
* Ambient Temperature: 0 - 40 C
* Relative Humidity: 5 - 95% non-condensing
* Altitude: to 3300 ft. (1000m)
* Performance Characteristics:
* Range A: Linear .3 - 3 seconds (to full speed)
* Range B: Linear 3 - 30 seconds (to full speed)
* Current Range (Nominal-Adjustable to 150%): 2, 3, 4, 6, 10 Amps
* Max. Speed: 70 - 105% of motor base speed
* IR Compensation: Adjustable
