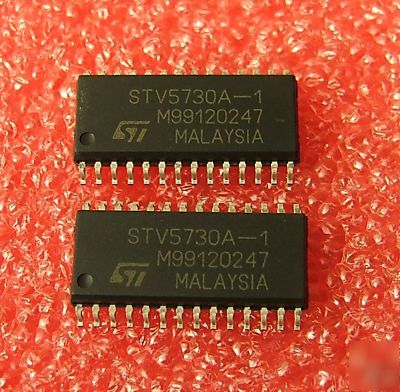

STV5730:hard to find osd generator chip from st
STV5730 Multi-standard OSD generator for VCR,TV receiver
-A CHARACTER GENERATOR WITH ASCII RAM AND CHARACTER ROM : -128 characters -12 dots x 18 lines character composition -11 rows x 28 characters page composition
-ACCURATE INTERNAL BANDGAP VOLTAGE REFERENCE
-INPUT CVBS CLAMP AND SYNC EXTRACTOR
-DEDICATED PINS FOR LUMA AND CHROMA EXTERNAL FILTERING
-GAIN ON CVBS OUTPUT FOR EITHER 0dB OR 6dB CAPABILITY
-MULTISTANDARD TRANSLUCENT MIXED MODE
-THREE DIFFERENT MARKERS CAN BE GENERATED SIMULTANEOUSLY
-THREE WIRE SERIAL INTERFACE FOR MICROPROCESSOR CONTROL
The STV5730 IC is intended to be used in VCR, SatellitereceiverandPAY-TVsystemsfor CVBSor R/G/B text/graphics insertion.
Package : 28 pins Plastic Micropackage (SMD)
Datasheet : http://www.datasheetcatalog.org/datasheet/SGSThomsonMicroelectronics/mXuyvxz.pdf
$5.00 - delivery 7 - 21 days (Worldwide)
