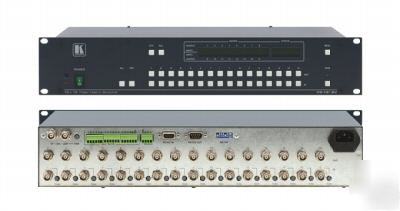

Kramer electronics vs-1616V 16X16 composite matrix swit
Manufacturer: Kramer Electronics Model/Part #: VS-1616V
The VS-1616V is a high performance matrix switcher for composite video signals. It can be configured as an 8x8 s-Video (Y/C) switcher, a 5x5 component (YUV) switcher, or a 4x4 RGBS Switcher.
Bandwidth - 230MHz (- 3dB) fully loaded.
Multi-Mode - Configure as either a 16x16 composite, an 8x8 s-Video (Y/C), a 5x5 component (YUV), or 4x4 RGBS switcher.
Selectable Input and Sync Signal Termination.
