> Varian ds 102 vane pump rebuilt, 115/230V w/ 1 yr wrnty
Varian ds 102 vane pump rebuilt, 115/230V w/ 1 yr wrnty

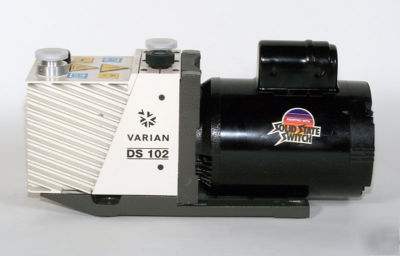

Varian DS 102 Rotary Vane Pump 115/230V
* Free air displacement: 4 cfm
* Ultimate partial pressure: 10-4 mbar
* Ultimate total pressure: 2 x 10-3 mbar
* Ultimate total pressure w/ gas ballast: 2 x 10-2 mbar
* Water vapor tolerance: 15 mbar
* Water vapor capacity: 60 g/h
* Oil capacity min./max.: 0.2/0.5 l
* Motor for single : 0.55 kW
* Nominal rotation speed: 1,800 rpm
