Used aec temperature controller 9KW TDW1NXQ very nice
Our Asset #:KSC379 - 005 A-B Qty available:1

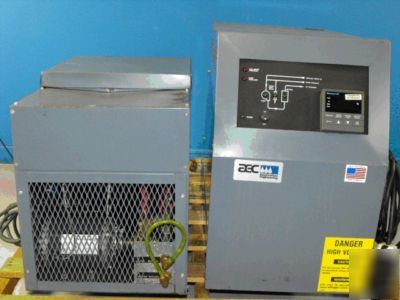

Used AEC Temperature Controller 9kw TDW1NXQ Very Nice!
FACTORY NEW replacement or price when new: $950.00
Manufacturer: Application Engineering Corp
Model: TDW1NXQ Serial #: 93G0410 Year:
HP/Amp/KW/KVA:3/4HP Voltage: 460/3/60 Phase: Other Info:
Monitors process water temperature to cycle the heating/cooling process, and ensures precise adherence to programmed temperature setpoints.
This specific machine is a custom cooling unit from Application Engineering Corporation.
The factory told us this unit had the following upgrades and special features raising the price to $22,000 when new:
Standard Features included are:
1. Compact, rugged cabinet with easy-access side panels
2. Cast-and-flange design to reduce connection points
Half- and full-heat capability, 9kW heater standard
3. Dual stage Incoloy immersion heater with IEC contactors
4. NEMA 12 (IP55) electrical enclosure
5. 0.25 cooling solenoid valve on 0.75 to 3 hp (.56 to 2.2 kW) models; 0.5 slowclose cooling solenoid valve on 5, 7.5, & 10 hp (3.7, 5.6, and 7.5 kW) models
6. Forward-facing liquid-filled To and From Process pressure gauges
7. Independent high temperature safety thermostat
8. Non-fused lockable rotary through door disconnect
9. Off-the-shelf microprocessor-based PID temperature controller with Process and Set Point LED readouts
10. Graphic control panel with indicator and warning status lights
11. Adjustable low supply water pressure switch; 16 psig (110kPa/1.1 bar)
12. 150 psig (1,034 kPa/10.3 bars) pressure relief valve
14. 0.75 water supply connection, 1.5 process connections; valve size matches drain size
15. Motor branch circuit overcurrent protection with phase loss and overload trip detection
Length: 48 Width: 40 Height: 30
a. Est. Wt. each: 350LBS b. Est. pkging wt: 30 c. Est. total wt: 380
