Gast air motor w/ gear box 15:1 1AM-nrv-60-GR11

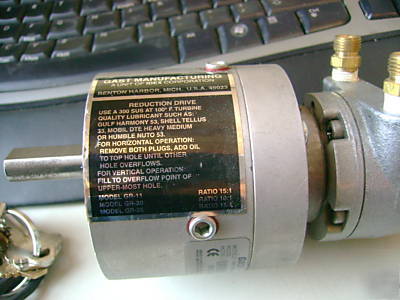

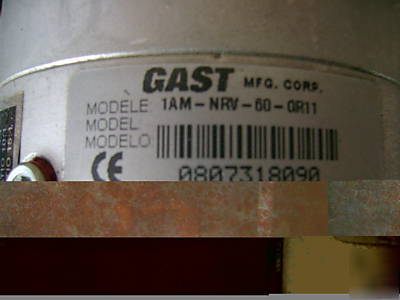

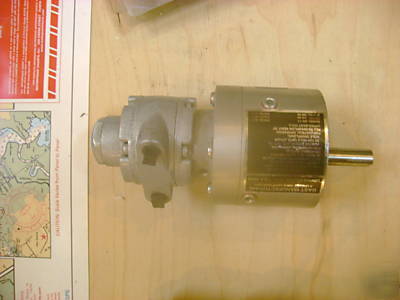

Gast Air Motor w/ Gear Box 15:1 1AM-NRV-60-GR11
Taken from McMaster Carr #59795K79
Parallel Shaft Face/Foot Mount
Similar to the Air-Powered Motors on this page, except these have a gearbox to deliver high torque at low speeds. Motors have a rotary-vane design and reversible rotation. Housing is iron. For best performance, use lubricated, water- and particle-free (down to 5 microns) compressed air (see our compressed air products on pages 958-964).
Parallel Shaft For inline use. All have an exhaust muffler, a top air inlet, and threaded mounting holes on the face for easy installation. These gearmotors can also be foot mounted. The 0.3 and 0.32 hp models require the foot-mount bracket sold separately below. The 1.25 and 1.26 hp models have an integral base. All mount horizontally or vertically in the shaft-down position.
Right-Angle Shaft The output shaft is at a right angle to the motor, which allows more mounting options. Mount horizontally.
Parallel Shaft Maximum pressure for 0.3 hp model is 90 psi; for 0.32 hp model is 60 psi; for 1.25 and 1.26 hp models is 80 psi.
Bracket Required for Foot-Mounting 0.3 and 0.32 hp Gearmotors Has four 0.28" mounting slots.
Right-Angle Shaft Maximum pressure is 100 psi.
