Eni model 403LA 3 watts linear

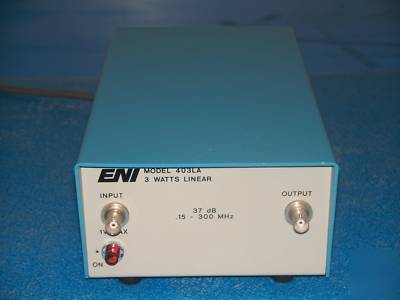

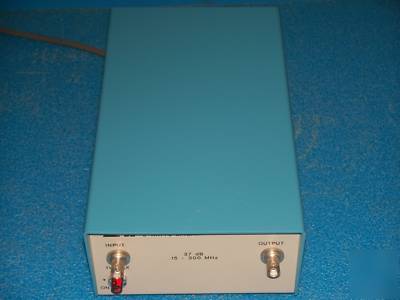

Electronics & Innovation 403LA 3 Watt Class A Linear Power Amplifier, 150 kHz to 300 MHz
The 403LA Broadband Amplifier is a rugged source of RF power suitable for a variety of UHF signal distribution and general laboratory applications. It is a compact fully solid state design. It features low-level intermodulation distortion and inherent protection against short and open circuit loads. The 403 LA amplifies the inputs of AM, FM, SSB, pulse and other complex modulations within its output and bandwidth capability. E&I's 403LA surpasses the performance specifications of the ENI 403LA.
An integral power supply allows for operation directly from an input of 115/230 V single phase. Both the power supply and the forced air cooling are conservatively designed for operation over a wide temperature range.
* Class of Operation: Class A
* Frequency Range: 150 kHz to 300 MHz
* Input Power for Rated Output: 1.0 mW / 0 dBm
* Size (H x W x D): 3.5" x 6.2" x 10.5" (88 mm x 157 mm x 267.5 mm)
The true value of this product is $4000
