4 spindle allen mavdw no. 23 hand & power feed drill

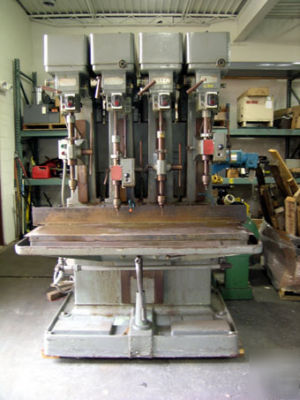

(1) USED - 4-SPINDLE ALLEN MODEL MAVDW AND MAV HEAVY DUTY NO. 23,
24" COMBINATION HAND AND POWER FEED DRILLING MACHINE*
Motor Driven with (4) 3 HP, 1755 RPM, 3-Phase, 60 Cycle, AC Spindle Drives.

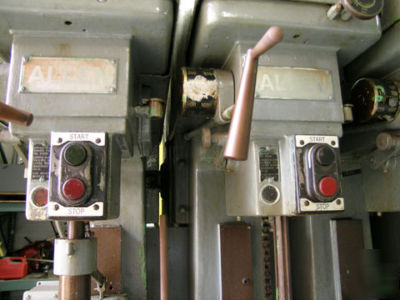

M.D. Coolant. Start/Stop Controls for each Spindle.
Work Surface of Table 21" x 56"
Spindle Speeds - No. 2 and No. 4 (12) 60 - 2400 RPM
- No. 1 and No. 3 (12) 60 - 2400 RPM
Feeds per Revolution (12) .00075 - .040
Table Movement on Column Centers 16"
Distance Between Spindle Centers 12-1/2"
Spindle Traverse in Sliding Head 5"
Size of Taper in Spindle - No. 1 thru No. 4 #2 MT
Approximate Dimensions 48" L x 63" W x 91"H
21" x 56" Adjustable Height Work Table

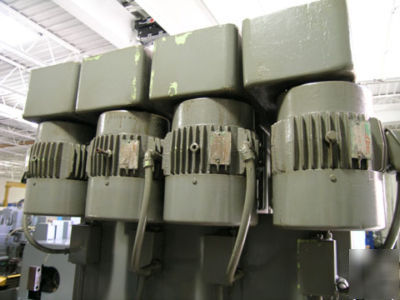

Heavy Duty V-Belt Vertical Motor Drives with Electrical Controls and
Spindles No. 2 and No. 4 - Positive Drive Power Feed with Automatic Feed
Engagement. Fine Feed Auxiliary Gear Box for Reducing Feeds 25%.
Spindles No. 1 and No. 3 - Hand Feed and Tapping.

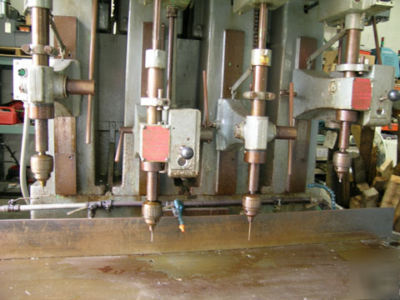

(4) No. 14N 0-1/2" Capacity Jacobs Chucks
