> Tektronix TLA714 with TLA7N4 module
Tektronix TLA714 with TLA7N4 module

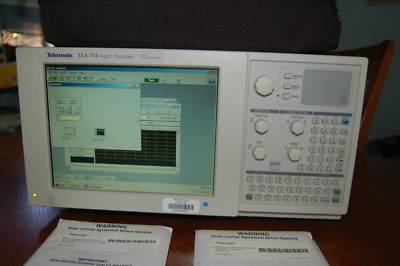

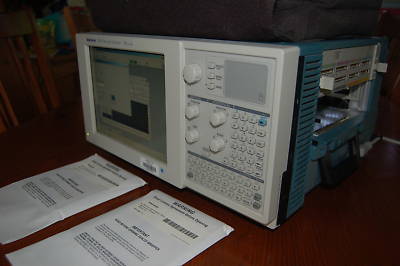

Tektronix TLA714 Logic Analyzer Mainframe
* Holds 4 single-wide or 2 double-wide modules
* Instrument modules include logic analyzers, pattern generators and digitizing oscilloscopes
* Up to 200 MHz state acquisition with 400 MHz data rate for advanced processors and buses
* 500 MHz deep timing analysis with up to 128 Mb per channel
* MagniVu technology provides 500 ps timing resolution on all channels all the time through the same probe
* Simultaneous state and high speed timing analysis through the same probes pinpoints elusive faults
* Broad processor and bus support universal source code support for correlating high-level language source with real-time trace
* Performance analysis support for optimizing target system remote control using Microsoft COM/DCOM technology supports advanced data analysis
* Microsoft Windows PC platform provides familiar user interface with network connectivity
Tektronix TLA7N4 136CH LOGIC ANALYZER MODULE
* 136 Channel Logic Analyzer with up to 1 Mb Depth
* MagniVu Acquisition Technology Provides 2 GHz (500 ps) Timing Resolution to Find Difficult Problems Quickly
* 100 MHz State Acquisition Analysis of Synchronous Digital Circuits
* Simultaneous State and High-speed Timing Analysis Through the Same Probe Pinpoints Elusive Faults Without Double Probing
Specifications Detail can be Found Easily on the Web; Here is an Example: http:// /documents/pdf/tek_tla.pdf
