Securitron prime time 7 day digital timer dt-7

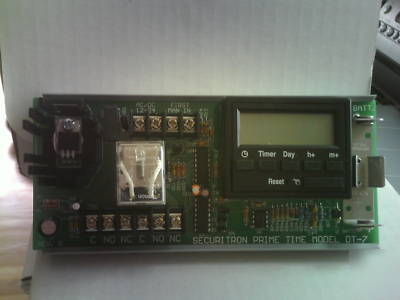

Securitron DT-7 Prime Time & Day Digital Timer The Prime Time digital 7-day timer is used to turn electric locks of other security systems on and off at programmed times. A 10-amp DPDT relay can be operated in toggle or pulse mode at selectable times during the week, with 12 programmed on/off times set daily, on selected days, or on blocks of days (Mon-Fri, Mon-Sat or Sat-Sun). The exclusive First man In feature delays operation until an external switch changes state which automates holiday programming in many applications.
The Prime Time operates on 12 to 24 volts AC or DC. An AA cell provides five year backup to the display module program memory. Actual size: 7 x 3 .
