Racer tech cnc bridgeport style vertical mill

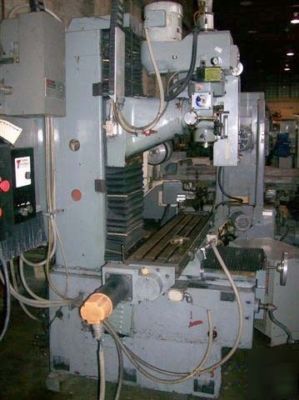

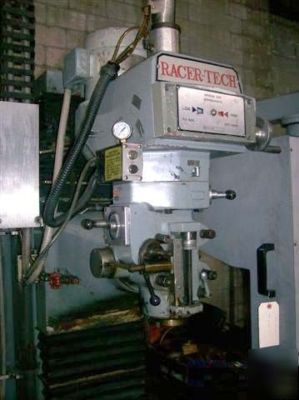

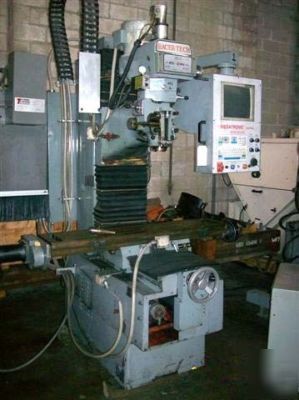

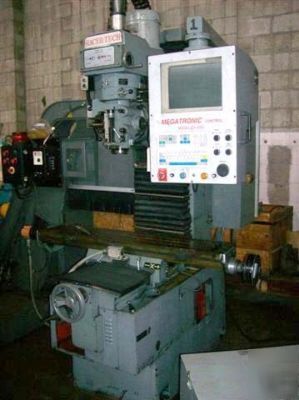

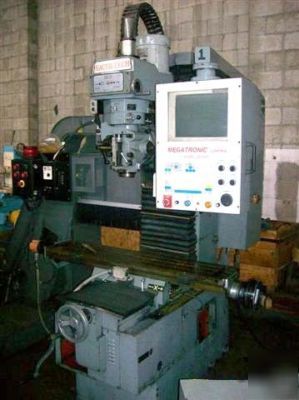

RACER TECH 3-AXIS CNC BED TYPE VERTICAL MILLING MACHINE

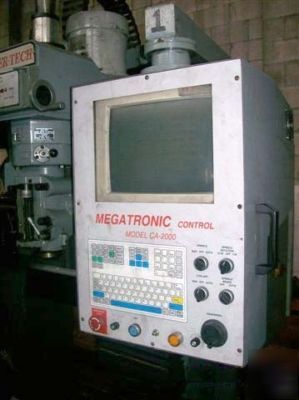

New 1996, S/N 230-96, Stock# K12495 EQUIPPED WITH: Megatronic CA-2000 PC Based CNC Control, Menu Driven Programming,
Color CRT, Manual Pulse Generator, Keyboard, Power Draw Bar,
3-1/2" Floppy Disk Drive, Coolant System. CATALOGUE SPECIFICATIONS: X Travel (Longitudinal)............................... 32"
Y Travel (Cross)...................................... 16"
Z Travel (Vertical)................................... 24"
Table Working Surface................................. 50"x10"
Table Work Load Capacity.............................. 500 LBS
Spindle Horsepower.................................... 2 HP
Spindle Speeds........................................ 50-4200 RPM
Spindle Taper......................................... 40 Taper
Feed Rates,........................................... 0.1 to 200 IPM
Approximate Dimensions................................ 48" x 68"
Approximate Height.................................... 102"

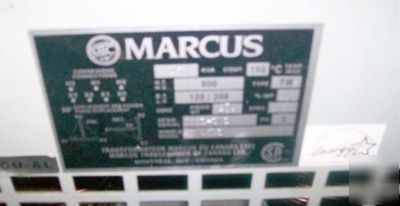

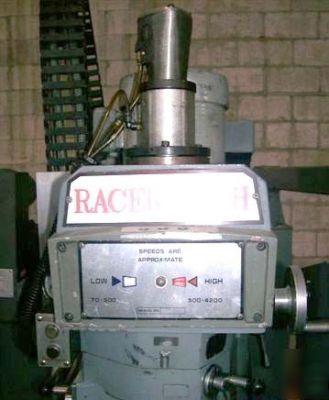

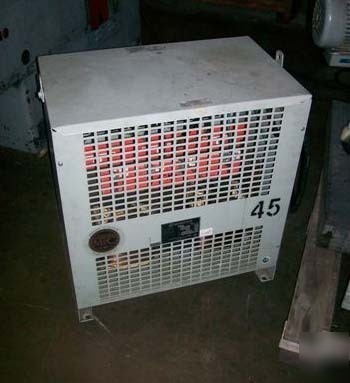

Approximate Weight.................................... 3,925 LBS CONDITION: Machine appears to be in Very Good Condition ! A Power Draw Bar was added to the machine by the plant and when they did they unhooked the Variable Speed Selector. Right now the machine runs at 4200 RPM or 500 RPM Basicly Top rpm in High and Low Range. The Selector could be hooked back up but you would sacrifice the power draw bar. The Machine is out of Canada and is 600 Volt But with the machine is a 45 KVA 208-600 Volt Transformer.
