Pelco HS3000 high secuirty camera housing enclosure
All Steel Construction (14-gauge)
2 Window Ports to Choose From
No Exposed Mounting Hardware
Tamper-Proof Fasteners Secure Enclosure
Tamper Switch Standard Feature

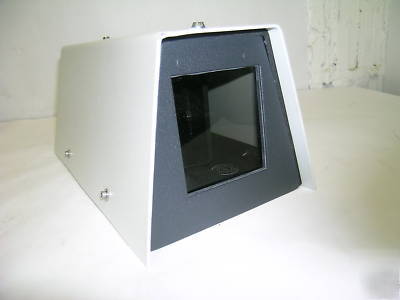

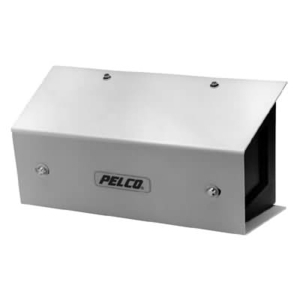

The HS3000/HS3020 are high security camera enclosures designed for installations such as ATM bank machines, prisons, detention cells, etc., requiring maximum protection from vandalism.
Constructed from medium gauge steel, the enclosure is available in 10-inch (25.40 cm) and 20-inch (50.8 cm) lengths. Both enclosures will accept most CCD cameras with fixed focal length lenses ranging in size from 4 mm to 75 mm. There is no exposed mounting hardware securing the enclosure to its mounting surface. Opening the enclosure can only be accomplished with a specially designed tool, eliminating the possibility of the enclosure being opened by unauthorized personnel. A factory-installed tamper switch is mounted on the secured access cover.
Designed to function as a wall or ceiling enclosure, the HS3000/HS3020 is versatile because it allows you to re-position the window to the opposite end of the enclosure should the viewing area requirements change. An impact resistant, .25-inch (6.35 mm) thick, smoked LEXAN window is supplied with the enclosure for discreet surveillance.
An optional metal frame adapter (HS3020CA) with conduit knockouts is available for surface mounted conduit applications (for use with HS3020 only). Other options (for both enclosures) include a clear LEXAN window and 120V or 24V heater kit.
