Oz optics er-100 polarization ratio meter infrared

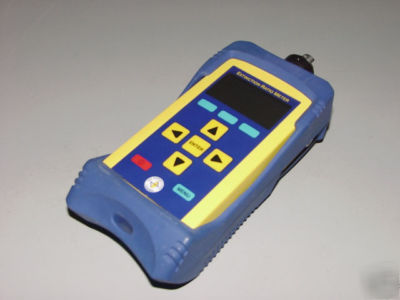

OZ OPTICS ER-100 POLARIZATION RATIO METER INFRARED
OZ Optics Polarization Extinction Ratio Meter allows one to quickly measure the output extinction ratio of light from a fiber. A rotating polarizer measures the extinction ratio and the orientation of the transmission axis with respect to the key on the connector. As an option, neutral density filters can be added to the Extinction Ratio Meter, to extend the maximum power range. These filters can be easily inserted and removed, without disturbing your setup. These filters allow power levels up to 2 Watts to be measured.
* Wavelength Range: 850 nm to 1650 nm
* Extinction Ratio Range: 30dB for 850 nm to 1290 nm; 35dB for 1290 nm to 1650 nm
* Extinction Ratio Accuracy: +/- 1dB
* Extinction Ratio Resolution: 0.01dB
* Angular Accuracy: +/- 0.5 degrees
* Angular Resolution: 0.3 degrees
* Update Rate (Extinction Ratio): 2.7 Hz
* Update Rate (Relative Power): 650 Hz
* Input Optical Power: 50 uW to 1.0 mW
* Communication Interface: RS232
