New spirax sarco angle seat actuator regulator valve
NEW SPIRAX SARCO ANGLE SEAT ACTUATOR REGULATOR VALVE

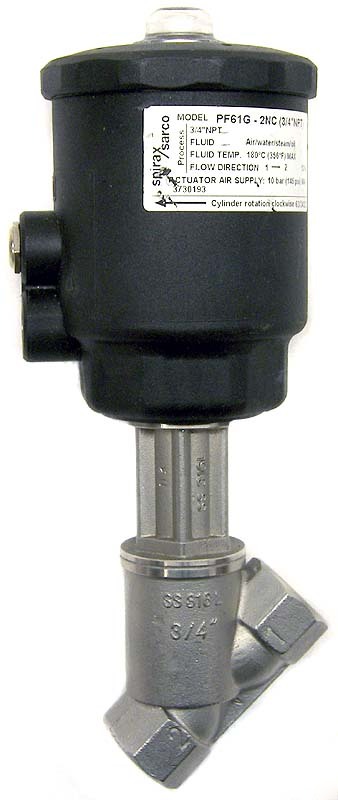

New Spirax Sarco Angle Seat Actuator Regulator, 3/4" NPT Valve
A 2-port normally closed pneumatically actuated on/off stainless steel
valve for use on steam, water, air, oil and gases.
The valve is designed for flow over the seat (port 1 to 2).
A pneumatic signal acts below the actuator piston to open the valve.
A spring acts above the piston to close the valve. The valve plug has a
PTFE soft seal to provide tight shut-off. A valve position indicator is included
on standard and flow regulator models.
Note: For water/liquid applications, a bi-directional valve (type BD) is recommended
to prevent waterhammer on valve closure.
Leakage: PTFE soft seal ANSI class VI
Flow characteristic: Fast opening on /off
Flow direction: Flow over seat port 1 to 2
Pilot media: Air, water or inert gas (140 F max.)
Actuator housing rotation: 360
Pilot connection Max. pilot pressure
45 mm (1-3/4") dia. 1/8" BSP 150 psig
