Meister TOP10-2 digital readout 9X49 9X42 9X48 mill dro
Meister TOP10-2 MILL DRO with 2 pieces of Standard type of linear scales.
Linear scale Travel stroke from 4 to 36 inch.
Scale resolution: 0.000 2" (5um)
Suitable for most bench-top and vertical milling machines:
Wabeco, Quantum, Seig, RongFu, Grizzly, Hafco, Optimum, Sharp, Acer, Alcera, Kondia,
Kearney & Trecker, Bridgeport, Deckel FP1/FP2 ..
Overall length of scale, OAL = Travel + 5" [only for information].

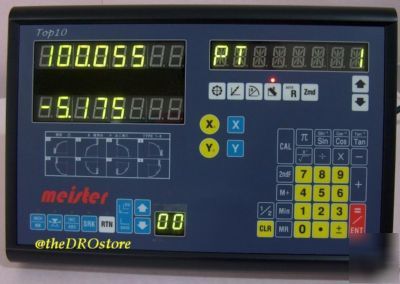

^ In this photo, the DRO set to 0.005 mm
^ Press the INCH/MM button and the DRO will display 0.0001 Inch
One year warranty from factory.
Swivel mounting arm, dust cover & power cord for display console.
Extruded aluminium coolant guards.
Australia, Austria, Barbados, Bulgaria, Belgium, Brazil, Columbia, Czech, Canada, Dubai, Denmark, Estonia, France, Finland,
Germany, Hungary,Indonesia, Ireland, Israel, Italy, India, Indonesia, Japan, Luxembourg, Liechtenstein, Macedonia, Malta, Malaysia, Netherlands,
Norway, New Zealand, Philippines, Poland, Qatar, Rusia, Romania, Switzerland, Slovenia, Spain, Sweden, SAF,
Serbia & Montenegro, Slovakia, Tunisia, Thailand, UK and US.
* 1/2 - find the center (value is divided by 2).
* RTN - Sleep / Pause to return to Normal mode and back again.
* ABS/ INC - absolute/increment co-ordinate interchange.
* RECALL value for repeated use.
* Mechanic Zero Position Memory: re-establish work-piece zero position after power failure.
* 99 multiple datum points memory.
* Power: 95~250 AC (50/60Hz)
* Operating temperature: 0 ~ 40 degree C,
* Display: 8 digits LED display; green color.
* Dimension: 10.25" x 7.0" x 2.0" (260 x 180 x 50 mm)
This MSC mill has Meister Top10-2 DRO - photo from Charles
* Grating pitch: 0.02mm (50LP/min).
* Accuracy: 0.005 mm or 0.0002"(at 20 deg C).
* Every scale has ABS reference marks.
* Response Speed: 60 m/min or 40 ins/sec
* Output Signal: Square wave signals. TTL output.
* Standard 3m long armoured cable.
This Bridgeport belongs to Holescreek(USA) is using a 3-axis Meister Top10 DRO:
10um (0.000 5") resolution Linear Glass Scales
Travel Stroke 6- ", 7-1/2", 10", 12", 13- ", 15- ", 17- ", 30", 36", 38" and 40" are ex-stock.
* Estimated delivery time is about 1 ~ 2 weeks to major cities and longer for some locations (assume no delay in transit).
* If the item does not arrive by the estimated time, please eMail to me and I may follow up.
* Return accepted for refund or exchange.
* Please read my Return Policy below.
