8' x 19" column cincinnati bickford super service

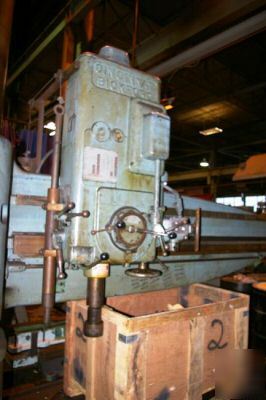

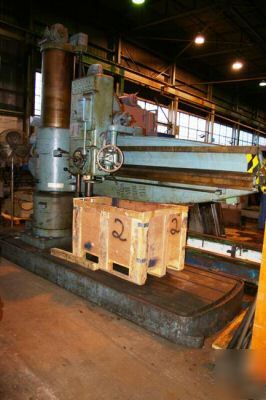

8' X 19" COLUMN CINCINNATI BICKFORD SUPER SERVICE
RADIAL DRILL, MANUFACTURED 1946
MAXIMUM DISTANCE CENTER OF SPINDLE TO
DISTANCE SPINDLE TO BASE - ( MIN. ) - 30"
DISTANCE SPINDLE TO BASE - ( MAX. ) - 80"
VERTICAL TRAVEL OF ARM APPROX. - 50"
SPINDLE SPEEDS - ( 36 ) - 18 TO 1124 RPM
FEEDS - ( 18 ) - .006" TO .125"
MAIN DRIVE MOTOR ON ARM - 20 HP
PRESENT ELECTRICAL ARRANGEMENT - 220/440/3/60
HEIGHT TO TOP OF COLUMN - 11'6"
POWER CLAMPING TO HEAD AND COLUMN
*** FREE LOADING UNTO OPEN TRUCK ***
