1-ton hydraulic box dumper, 36" dump height

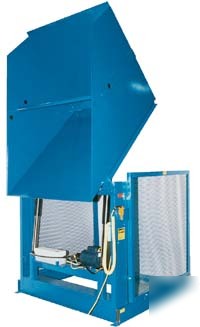

1-TON HYDRAULIC BOX DUMPER, 36" Dump Height
Model Number For This Listing: HBD-2-36
1-TON HYDRAULIC BOX DUMPER, 36' Dump Height
Capacity: 2,000 lbs. , Dump Height: 36" , Level Height: 53" , Rotated Height: 108" , Usable Chute: 51 "W x 50"L , Overall: 64"W x 67"L - Designed for controlled dumping of material from boxes, crates and other types of containers. Lowered height of only 1/2" allows for pallet truck loading and unloading. Retaining bar for use with 24", 30", and 36" high containers (contact us for heights up to 65 inches: 1-(***)-424-4908). Maximum rotation is 135 . Chute reach is 10" when fully rotated. Internal 2HP power unit and hand held control standard. Protective mesh side screens included. Heavy-duty welded steel construction. Painted blue finish.
