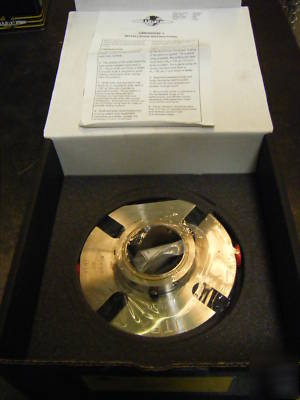

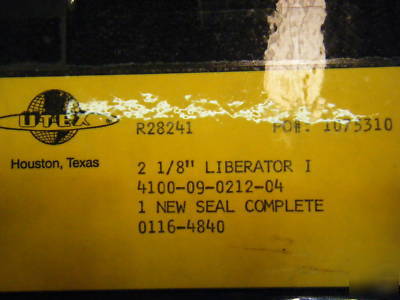

Utex liberator i single cartridge seal, 2-1/8"
The Liberator I cartridge seal (patented) incorporates advanced seal design features. Using a "ball" drive, the Liberator resists twisting and torsional strains common to pin or key drives. The thin cross-section allows the Liberator I to be used in ANSI pumps without modification.
Aflas o-rings are standard in all Liberators giving them a broad range of chemical compatibility. The Liberator gland incorporates both vent and drain connections, a carbon throttle bushing, and provides two tangential flush ports for clockwise or counterclockwise pump rotation.
Liberator I Features and Benefits
4. Wave spring is isolated from the product.
5. Lower emissions in ppm, higher shaft speeds, heavier viscous materials, self-aligning.
8. Liberator I gland has two tangential flush ports for clockwise or counterclockwise pump rotation.
9. Standard vent (quench) and drain connections.
9. Allows safe dispersal of vapors and product leakage.
10. Carbon safety throttle bushing in gland is standard.
10. Minimizes product leakage to atmosphere. Reduces possibility of bearing contamination, non-sparking material in case of pump bearing failure.
