Pc digital oscilloscope & audio generator software

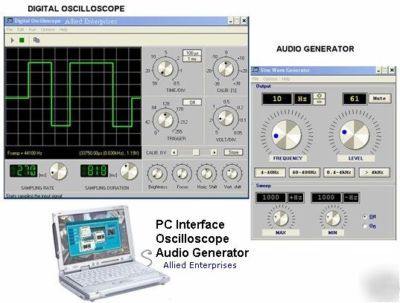

PC Digital Oscilloscope and Audio Generator interface Software
Computer interface turns your PC into an analogue oscilloscope and Digital storage oscilloscope.
No need for external circuit board or special interface
The Oscilloscope uses the sound card's input to measure signals. This means that the quality of the scope depends on the quality of your sound card. (NOTE)
The scope automatically uses the highest sample frequency available at the input that you select
( typical audio card by manufacturer usually 44 kHz max)
The same as the input impedance of your sound card.
Specification: Sine Wave Generator
The Sine Wave Generator uses the (NOTE) sound card's output as sine wave output.
The oscillator automatically uses the highest sample frequency available at the output that you select (usually maximal 44 kHz but people with 22 kHz max.
The same as the output impedance of your sound card.
Media supplied: CD ROM With electronic format instructions and probe plans
BONUS Probe hardware Kit with components included
(NOTE) Existing PC Audio card required to install the software
(*) Existing PC Audio card required to install the software
Price listed is the cost of CD, documentation and instructions in electronic format. Software is free,
Windows XP, Vista and Windows 7 are a Registered trade mark of Microsoft Corporation
