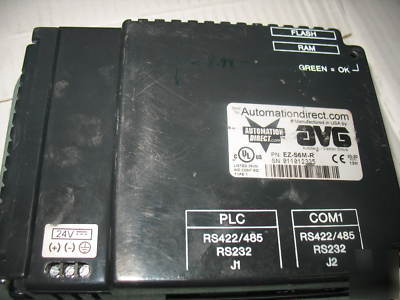

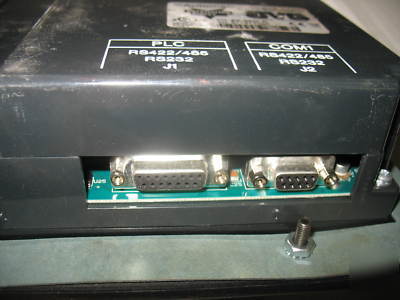

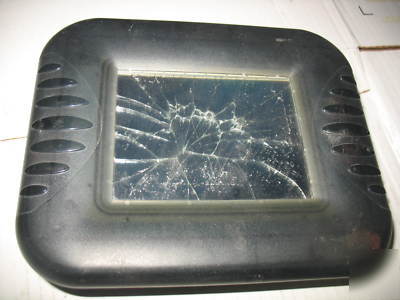

Avg touch screen ez-S6M-r EZS6MR
CLICK HERE for more ELECTRONICS & EQUIPMENT!!!
* 5.7 diagonal mono STN LCD
* 25,000 hour expected bulb half-life
* 1/4 O-ring gasket and eight mounting studs for NEMA 4/4X (indoor)
* 2.3 (59.0mm) installed depth
* Has all EZTouch Enhanced objects
* Programmed with EZTouch Enhanced programming software
* All the serial drivers listed in Extended Info are supported, the panel does not provide support for Ethernet Option Cards
* EZ-PANEL-M manual included with the panel
* EZ-S6M-R with Reduced Memory offers:
* No Ethernet or DH+ card support
* EZ-S6M-F and EZP-S6M-FH with Full Memory offer:
* 512K RAM expandable to 1.5MB
* 512K, 1MB or 2MB option flash card for memory backup
* Ethernet card optional (EZ-ETHERNET)
* Modbus TCP/IP card optional (EZ-ETHERPLUS)
* EZTouch Enhanced Detailed Specifications (pdf)
