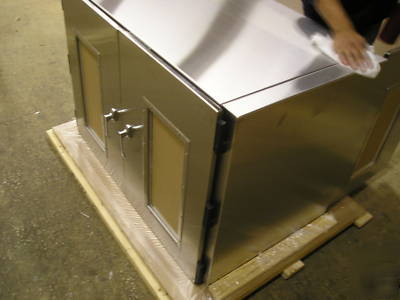

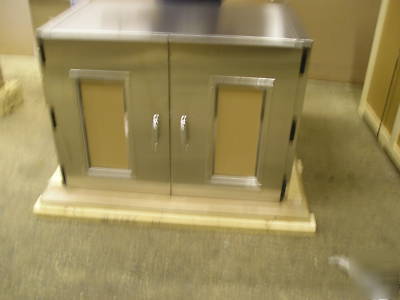

Atmos tech pass thru 36"X24"X24" double door cleanroom

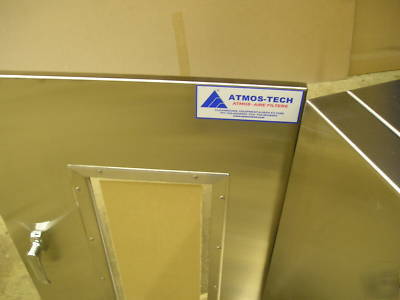

Model # PT3624-24 SS/DD/MI/SP Mfg Date 2007 Visit our website for more details about Atmos-Tech Industries
List price $3950.00. On sale for $1000! or best offer.
NOTE: This Unit HAS some very minor scratches but was never put into production.
Atmos-Tech Pass Thrus are standard cleanroom equipment for providing an air lock between two controlled areas. The doors are interlocked to prevent cross contamination between two cleanroom areas. The pass-thru shall provide and air lock for optimum retention and prevention of cross contamination of the controlled atmosphere within the cleanroom area.
Inside dimensions 24"H x 36"W x 24"D Outside dimensions 28.5"H x 41"W x 26"d

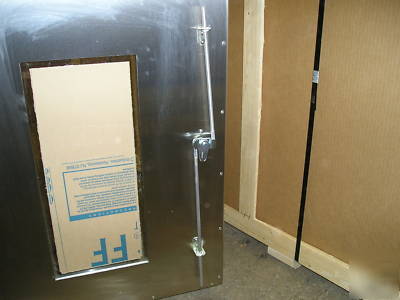

-(4ea) 20ga doors stainless steel type 304 with #4 polish

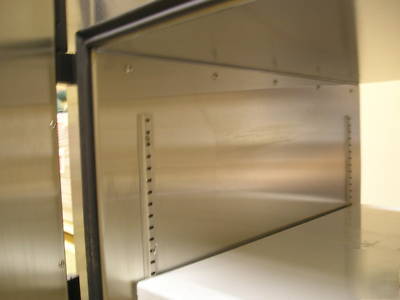

-(2ea) solid shelves 16 ga stainless steel with adjustable pilaster
-20 ga stainless steel type 304 with #4 polish
-supplied with ss wall mounting angles

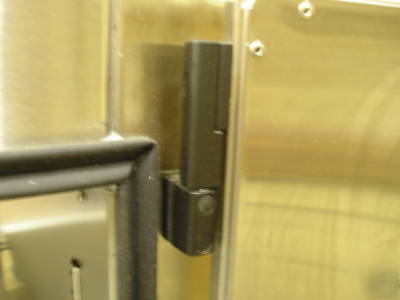

-stainless steel enclosed mechanical interlock system
-1/4 turn chrome plated handles
