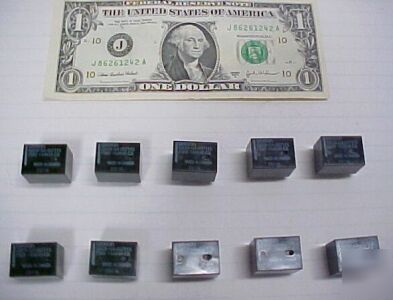

10 omron G8SN subminiature pcb relay relays 10A spdt
According to Omron, the G8SN is an automotive relay with the following characteristics:
Sub-Miniature Automotive PCB Relay G8SE
- General purpose automotive PCB relay.
Recommended loads: Motor, Resistive
Continuous carry current (max.): 20A
Inrush current (L/R=7ms; 15ms max.): 60A
Contact value drop (Initial value): 50m-
Operating voltage (max.): 16VDC
Pull in voltage (cold start) at 20C (max.): 7.3VDC
Drop-out voltage at +20C (min.): 1.2VDC
Max. Continuous carry current flow time (16 VDC at 80C max.): Unlimited
Operating ambient temperature: -40C to +110C
Mechanical life (min.): 1,000,000 cycles (at frequency of 18,000 operations/hour)
Electrical life (resistive load) (max.): 100,000 cycles
- Intermittent windshield wiper
Omron PCB relays may be mounted in any convenient location that is dry and not exposed to excessive dust, S02, H2S or organic gases.
- Omron PCB relays may be oriented in any desired direction. Whenever possible, however, care should be taken that they are not subjected to vibration along the direction of contact movement.
- If several relays are to be mounted on a single printed circuit board, they should be given at least 3mm clearance on all sides as shown in the diagram below.
Note: Proper spacing is neccessary to dissapate heat build-up from individual relays. Other than this, there are normally no restrictions depending on application. Please contact Omron for details.
Sub-Miniature PCB Relay - G8SN
- 10A Continuous Contact Rating @ 85C.
- 10A, 16VDC Switching Rating.
- 30A Inrush on N.O. at 16VDC.
- Dimensions (Max) 22.5 x 16.5 x 16.5 mm
G8SN-1C4P-DC12 - Sub-Miniature, SPDT, PCB Mount
Max Switching Current: Inrush 30A, Steady 10A
Min. Carry / Switching Current: 1A
Contact Material: Silver Tin Oxide (Cadmium Free)
Nominal Power Consumption: .08W
Pull in Voltage: 7.3 V max @ 23C
Dropout Voltage: 0.6 V min. @ 23C
Max. Initial Contact Voltage Drop: 25mV @ 1A
NO Activation Time: 10 ms max. (4.3 ms typical) @ 14 V
NO Deactivation Time: 10 ms max. (2.6 ms typical*) @ 14 V
Insulation resistance: 20 M min (at 500 VDC)
Dielectric strength: 1.0 mA max. leakage at 900 VAC, 50-60 Hz for 1 sec between coil and contacts and between contacts.
Ambient Operating Temperature: -40C to 85C
Mechanical: 1,000,000 operations min.
Electrical: 100,000 operations min (load dependent).
* Typical data includes coil suppression. Release times may decrease without coil suppression.
Load Type: N.O./N.C. Reversing Motor Load
Cycles Tested: 100,000 + 100,000 / 3s on, 3s off
Load Type: N.O./N.C. Rear Wiper Motor Load
Cycles Tested: 200,000 / 1s on, 4s off
Cycles Tested: 300,000 / 0.8s on, 9.2s off
Load Type: N.O. Magnet Clutch Load
Cycles Tested: 300,000 / 2s on, 2s off
Load Type: N.O. Door Lock Motor Load
Cycles Tested: 200,000 / 0.2s on, 19.8s off
So, do the relays in this listing have all of the same characteristics? I don't really know. Here is the only thing I could find on the Omrom website (PDF file):
http:// /PDF/G8SN%20Data%20Sheet.pdf
