@@ leader lbo-5860B waveform monitor ntsc @@

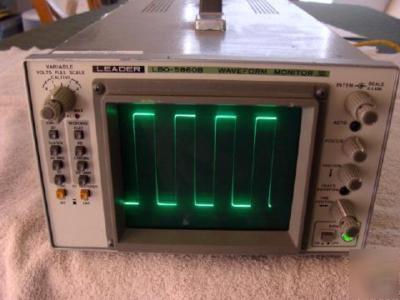

This is a professional broadcast television waveform monitor.It is much newer and has more features and capabilities than the Tektronix 528 or 528A. This unit has been tested by connecting it to a professional Sony video camera set to put out an NTSC colorbar signal as seen in the above pictures.
SPECS: *** Response: Flat, IRE, Chroma, Dif Gain *** A and B inputs *** Line Selector: A 1, A 4, Cal (1v), B 1, B 4 *** DC Restorer *** Sync: Int/Ext *** Sweep: 2H, 1us/Div, 2V Mag, 2V.
