New eastwood dualvoltage powder coating gun starter kit

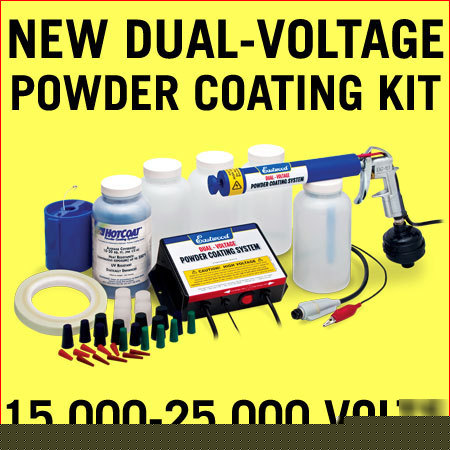

NEW Eastwood DualVoltage Powder Coating Gun Starter Kit
The new "Dual-Voltage"Hotcoat Powder Coating Gun delivers the ultimate, professional-quality powder-coat finish.
* 15,000 volts for recessed areas
* 25,000 volts for large areas
* Better multi-coat coverage
Dual-Voltage Powder Gun Starter Kit Includes:
* Dual-Voltage HotCoat Powder Gun
* High Temperature Fiberglass Masking Tape
* High Temp Silcone Plugs Assortment
* 1 lb spool Safety Wire .041"
* 8 ounces High Gloss Black Powder
* (3) 8 ounce plastic bottles & lids
* Disposable In Line Air Filter
* Eastwood Powder Coating Chip Chart
This innovative system will allow you to achieve the benefits of powder coating small parts instead of coating them with paint. The new Dual Voltage system gives you the capability to coat small areas using the Low 15kv setting. Or coat large areas using the High voltage setting 25kv. All you need is a compressed air source (5-10 PSI from a portable tank with a regulator or a compressor) and an electric oven or toaster oven. The Hot Coat Dual Voltage system should only be used in a clean, dry, well-ventilated work area! A dedicated electric oven or toaster oven will be needed to cure the powder. Most powders will cure at 400 Degrees Fahrenheit after becoming a liquid form. Always read directions on powders for proper curing temperatures.
Power unit supplies over 9000 VDC at 15 micro amps. Plugs into grounded 110VAC outlet. Gun requires as little as .5 cfm at 5-10 psi. Fill cup no more than 1/4-1/3 full, wave the nozzle in a circular motion about 4-6" from the surface to keep the powder flowing efficiently and coat evenly. Use 8 psi for best results. Powder coated surfaces withstand fuel, Brake fluids and most solvents and are very chip resistant. Wear a respirator while curing powder. Do not apply powder into a small boxed area.
