Microswitch 12MM dc proximity sensor #FL7M-2J6D-cm

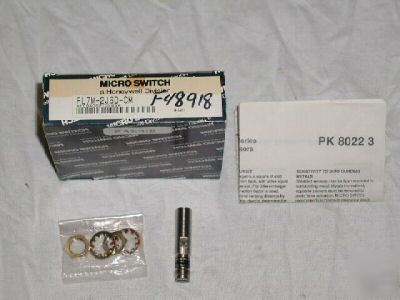

Honeywell / Microswitch 12mm DC Proximity Sensor #FL7M-2J6D-CM
* Sensor Size: 12 mm (0.47")
* Sensing Distance: 2 mm (0.08")
* Supply Voltage: 10 to 30 VDC
* Voltage Drop: 3.5 V maximum
* Switching Frequency: 1.5 kHz
* Hysteresis: ? 15% of sensing distance
* Circuit Protection: Short circuit, incorrect wiring
* Temperature Range: -25 to +70 C (-13 to +160 F)
* Sensor Material: Nickel plated brass
* Cable: Oil resistant vinyl, 20 gauge
* Vibration: Double amplitude of 1.5 mm and frequency of 10 to 50 Hz applied to each direction of X, Y, Z for 2 hours.
* Shock: Shock of 50 G applied each direction of X, Y, Z 10 times.
