Hp (agilent) mixed signal oscilloscope 1660AS 136 chan

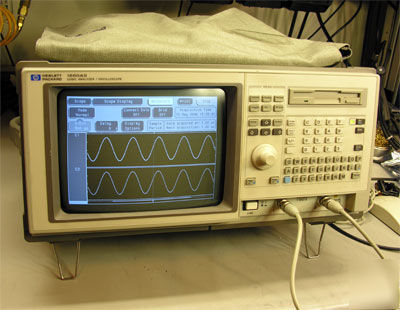

HP (Agilent) 1660AS 136 Chan Logic Analyzer Oscilloscope w/ Probes, Pod Cables & Extras
The HP/Agilent Technologies 1660A Series Logic Analyzers are part of a
new generation of general-purpose logic analyzers. The 1660A Series
consists of five different models ranging in channel width from 34
channels to 136 channels. State speed is either 50-MHz or 100-MHz
(depending on the model), and all models have 500-MHz timing
speeds. The 1660A series logic analyzers are designed as full-featured
stand-alone instruments for use by digital and microprocessor
hardware and software designers.
* State and timing channels: 136
* Setup/hold time: 3.5/0 ns to 0/3.5 ns
* State/timing memory depth: 4k on all channels, 8k on half channels
* Timing analysis modes and speeds (conventional): 250MHz on all channels, 500MHz on half channels
* Timing analysis modes and speeds (transitional): 125MHz on all channels, 250MHz on half channels
* Timing analysis modes and speeds (glitch): 125MHz on half channels
* State analysis speed: 100MHz
* Minimum detectable glitch width: 3.5 ns
For a mixed signal oscilloscope these units are an incredible value!
User Reference Available here:
http://cp.literature.agilent.com/litweb/pdf/01660-97034.pdf
This scope is loaded with accessories and includes all accessories pictured including:
This unit is in excellent very clean condition and works great. It has some very minor screen burn (see 2nd picture).
