6" electronic digital caliper steel large lcd screen

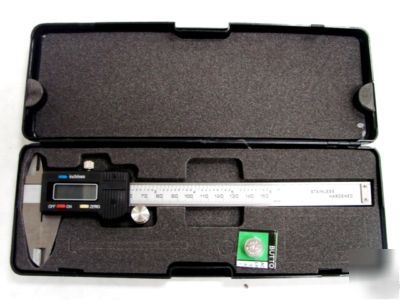

6 Inch Large Display Digital Caliper With Data Interface and Molded Case
Zero setting at any position, easy to take relative measurements.
Metric/Inch system interchanges at any position.
With data output interface, data can be transferred twice. The cycle is 300ms(20ms in fast reading state). Transmitting time: 0.5ms. Four wires(from left to right): Negative power(-), Clock pulse CP, Data D, Positive power(+). Pulse range of date: 0 Level<0.2V, Level 1 >1.3V. Clock Pulse CP: 90K Hz, effective for high electrical level.
Special function: With data holding, fast display, fast tracing Maximum and Minimum value during measurements, conversion between relative and absolute measurement and tolerance zone setting.
