1998 dehoff model 1018T gun drill, 1" dia cap, 18" strk
1998 DEHOFF MODEL 1018T GUN DRILL, 1" DIA CAP, 18" STRK

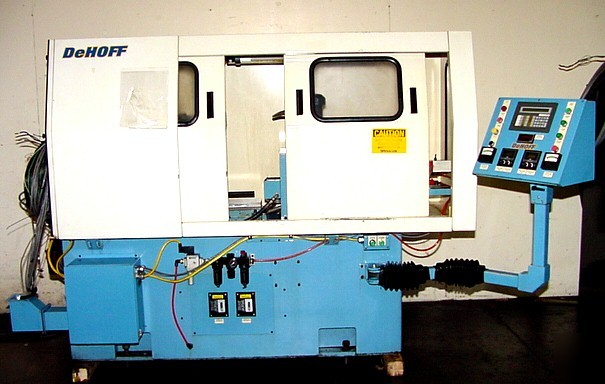

1" X 15" DEHOFF PRECISION DEEP HOLE GUN DRILL
MAXIMUM DRILLING DIAMETER ................. 1
DRILL HEAD STROKE ......................... 18
SPINDLE SPEEDS ............................ 1000 - 8000 RPM
FEED RATE ................................. .1 - 30 IPM
RAPID TRAVERSE RATE ....................... 150 IPM
COOLANT PRESSURE, MAXIMUM ................. 1500 PSI
RESERVOIR CAPACITY ........................ 90 GALLON
COOLANT FLO (GAL/MIN) ..................... 60 GPM
TANK CAPACITY ............................. 300 GALLON
- (2) 5 HORSE POWER SPINDLE MOTORS
- BALL SCREW DRIVEN DRILL FEED
- 30 HORSE POWER HIGH PRESSURE COOLANT SYSTEM
- BALL SCREW DRIVEN HEADSTOCK FEED SYSTEM.
