aines 150SP stationman probe tracer cable tester exc
The probe requires a tone source in the range of 500 to 1000 hertz, such as the AINES Model 140A Tone Test Set or another of the same or better quality.

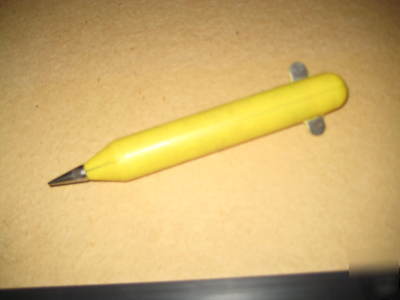

The AINES Model 150SP STATIONMAN Probe is designed to be an inexpensive solution to the location of tone while at the same time, utilizing your telephone test set (such as the AINES Telephone Test Set ) as the audio headset. The 150SP is provided with a cone-shaped tip and a duckbill tip that is longer and flatter, permitting insertion onto larger cables or cables under tension where slack cannot be obtained. An optional leather carrying case is available at low cost.
No more time consuming searching.
Leads of the butt set are clipped to the "ears" of the probe.
When the probe nears the proper cable pair, the tone signal is heard in the receiver.
Battery powered, automatically energized when the clips of the butt set are attached.
High input impedance to permit capacitive coupling with the pair carrying the tone signal.
Output impedance is low to match the impedance of the butt set or headset.
