New honda pramac 5000 watt generator

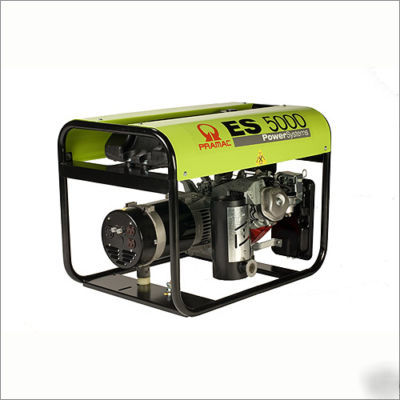

The ES Class is designed for general professional use. It is ideal for heavy duty service on the jobsite or as temporary stand-by-power. It also has brushless heavy duty alternators with Total Harmonic Distortion less than 6%. This Pramac 5000 Watt Gas Generator has an alternator-mounted control panel, mounted long run 2.9 gallon fuel tanks, and heavy duty frames.
The universal wheel kit is an excellent tool to aid in the transportation of generator sets. This wheel kit is compatible with ES Series 5000 Watt Gas Generators. It is very easy to use and features wheels and handles for efficient mobility for all of your transportation needs.
Running time at 75%: 6.4 hours Ideal for temporary stand-by-power Professional, heavy duty usage Circuit breaker protection Oil-guard system High quality, brushless heavy duty alternators with THD less than 6% Alternator-mounted control panel Frame-mounted long run 2.9 gallon fuel tanks, super heavy duty frames
Maximum wattage: 5000 watts Voltage: 120/240 volts Frequency: 60 Hz Engine: Honda GX270-9.0HP engine Fuel type: gas Aspiration: natural Cooling system: air cooled Starting system: recoil Consumption at 75%: 0.45 (1.7) gal (l)/h Tank capacity: 2.9 gallons Running time at 75%: 6.4 hours 1 DPLX 125V-20A (5-20R) socket 1 TL 125/250V-20A (L14-20R) socket Alternator: 1-120V Duplex, 1-120V/240V TL Dimensions: 28.7" L x 19.7" W x 21.1" H
Compatible with 5000 watt Pramac generators Plugs into 120/240 twist lock connection on generator May be plugged into a transfer switch May be plugged into an inlet box Commercial grade to prevent voltage drops Suitable for up to 5000 watts
5000 watt capability Paintable Weatherproof UL listed Units with breaker are available when required by local inspectors
Most versatile manual transfer switch Compatible with Pramac generators up to 5000 watts Features 6 circuits Expandable up to 16 circuits Possible to reconfigure the circuit breakers as needed Ideal for generators up to 5000 watts Can be surface or flush mounted indoors Able to accomodate hardwiring to a generator via power inlet on top May be installed with a plug-in connection Easy maintenance- designed with interchangable type circuit breakers for easy replacement or expansion in the field Code-gauge metal cabinet has flat front cover and powder-coat finish that won't rust or chip Dual watt-meters help balance and monitor generator loads Copper bus-for better reliability Handles both inductive and resistive loads Equipped with a wiring harness that includes 24' of flexible conduit Features branch circuit breakers and mechanically interlocked main breakers
Item:Weight:Dimensions: Universal Wheel Kit23 lbs.Unavailable 25' Power Cord for 5000 Watt7 lbs.Unavailable Power Inlet Box For 5000 Watt3 lbs.Unavailable ES5000 5000 Watt Gas Generator134 lbs.21.1" H x 19.7" W x 28.7" D Transfer Switch Up To 5000 Watts21 lbs.11.5" H x 14" W x 3" D
Length 28.7 inch 729 mm Width 19.7 inch 500 mm Height 21.1 inch 536 mm Dry weight 134 lbs 61 kg
