Sensata klixon aircraft circuit breaker 6752-12-2-1/2

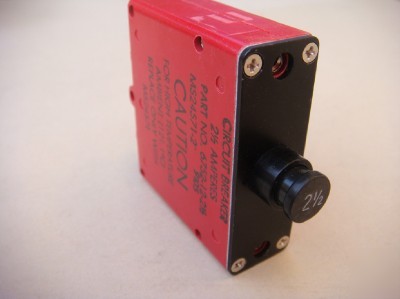

Sensata Tech (klixon) Aircraft CIRCUIT BREAKER 6752-12-2-1/2
CONDITION: NEW IN SEALD MILITARY PACKAGE
0.187 INCHES MINIMUM AND 0.249 INCHES MAXIMUM
CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALL
DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIE
1.800 INCHES MINIMUM AND 1.820 INCHES MAXIMUM
MAXIMUM CONTINUOUS LOAD CURRENT RATING PER POLE
2.5 AMPERES AC AND 2.5 AMPERES DC SINGLE LOCATION
OPERATING VOLTAGE TYPE AND RATING PER POLE IN VOLT
200.0 AC AND 28.0 DC SINGLE LOCATION
MAXIMUM INTERRUPTING CAPACITY CURRENT TYPE AND RAT
5000.0 AC AND 5000.0 DC SINGLE LOCATION
ULTIMATE TRIP RATING OF CONTINUOUS CURRENT RATING
MAIN CONTACT TRIPPING MECHANISM TYPE
MANUAL ACTUATOR TYPE AND QUANTITY
INTERNAL TRIP RELEASE CONFIGURATION
TRIP DELAY TIME IN SECONDS PER RATED CONTINUOUS CU
12.000 MINIMUM AT 200 PCT AND 32.000 MAXIMUM AT 200 PCT SINGLE LOCATION
INCLOSURE PROTECTION TYPE FOR WHICH DESIGNED
CORROSION RESISTANT AND HERMETICALLY SEALED AND EXPLOSION PROOF AND HUMIDITY RESISTANT AND SALT SPRAY PROOF AND SAND RESISTANT AND DUSTPROOF AND VIBRATIONPROOF AND SHOCK RESISTANT AND FUNGUS RESISTANT
81349-MIL-C-27715 SPECIFICATION
96906-MS24571 GOVERNMENT STANDARD
