Power controller, wood lathe speed controller

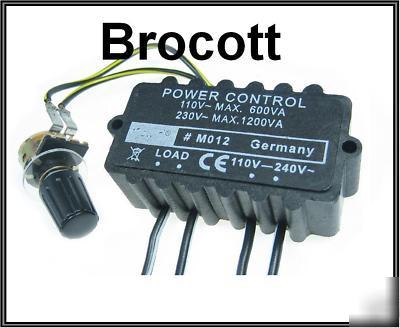

240V & 110V Motor / Appliance Speed Controller / Dimmer
Speed Controller / Dimmer 110V / 240V
Loads of applications! ...regulates incandescent lamps, heaters, hand drills, motors etc. via a potentiometer. Operating voltage: 110...240V~. Max. admissible current: 6 amperes (3A constant duty). At 230V~ this corresponds to 1200 / 600W and to 600 / 300W at 110V~.
Available attachments: auxiliary module M150 DC and Pulse Converter. When superposing this module, it also possible to control the dimmer module M012 with control voltages (1..5V= or 3...12V= or 6..24V=) or with TTL pulses.
The controller can only be used to control the speed of a 1ph, AC electric motor providing that the motor does NOT have an internal centrifugal switch.
* Admissible operating voltage: AC 110...240V, 50...60 Hz
* Max. admissible current: 6A (constant duty: 3A), at 110V~ this corresponds to maximally 600 watt or constant duty 300 watt, respectively, or to maximally 1200 watt or constant duty 600 watt, respectively, at 230Vac
* Duty cycle: 100% at 3A or 20% (max. 3 min.) at 6A, respectively
* Control: via a firmly connected rotary potentiometer
* Loads: for ohmic or inductive loads
* Dimensions: approx. 61 x 35 x 23 mm
