New potter & brumfield time delay relay cns-35-92 -

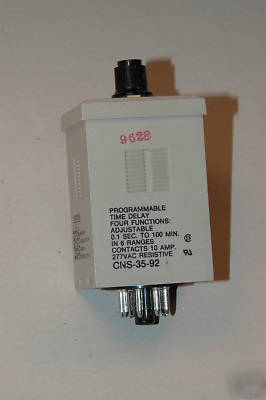

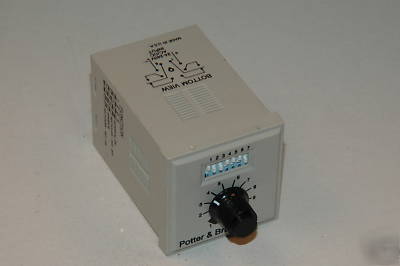

Potter & Brumfield Time Delay Relay CNS-35-92 - New
* Termination Type = 8-Pin Octal Style Plug
* Input Voltage (VAC) = 24 240
* Input Voltage (VDC) = 24 240
* Contact Rating = 10A @ 30 VDC or 277 VAC
* Mode of Operation = Programmable - 4 Timing Functions
* Delay Time = 0.1 seconds to 100 minutes
* Repeatability, Max. = 2%
* Approved Standards = CSA Certified, UL Recognized
* Contact Base Material = Silver Cadmium Oxide
* Approx. Dimensions (L x W x H) (mm [in]) = 47.80 x 47.80 x 71.90 [1.883 x 1.883 x 2.832]
* Enclosure Type = Beige Plastic 1/16 DIN Case
* Contact Arrangement = 2 Form C, DPDT, 2 C/O
* Multiple Timing Ranges = Without
* Temperature Range ( C) = -10 +55
