Noshok 500 ser stainless steel pressure gauge

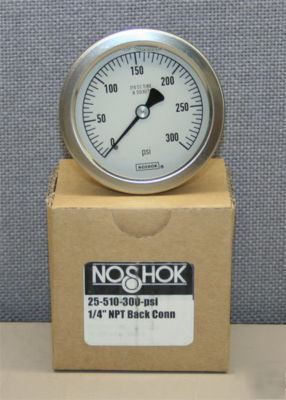

Noshok 500 Series Stainless Steel Pressure Gauge 25-510-300 New in Box
NOSHOK 500 Series gauges are liquid filled with all stainless steel construction and are the ultimate in corrosion resistant heavy duty vacuum and pressure gauges.
NOSHOK 500 Series Gauges with all stainless steel construction are the ultimate in corrosion resistant heavy duty vacuum and pressure gauges. The cases and bezels are constructed of solid 304 SS. Lenses are either trogamide, instrument glass or safety glass. The connection and bourdon tubes are 316 SS and are argon-arc welded utilizing a 316 alloy filler material to maintain the integrity of the measuring system. "C" tubes are used on pressure ranges through 600 psi and coiled safety tubes are used on pressure ranges above 600 psi. The bourdon tubes are then matched to stainless steel precision movements and balanced pointers for smooth, accurate indication.
* Model Sizes: 15, 25, 40, 60
* Connection Type: 316 SS Center Back
* 2- " Dial Size Accuracy: 1.5% Full Scale ASME Grade A
