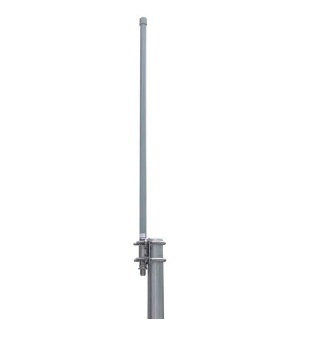

Avalan AW5P-900 AW5P900 antenna wireless video 900MHZ
5dBi Slimline NLOS Series 900MHz Omni Antenna with N Female Bulkhead Connector
The NLOS Series Omnidirectional Antenna system offered by Pacific Wireless are constructed of UV stabilized fiberglass and Stainless Steel for long service life. Mounting is easy with a dual u-bolt mounting system. The antennas are vertically polarized. The 6dBi and 8dBi come standard with 18 pigtails terminated in an N female connector. The 5dBi and 11dBi comes standard with an integrated N Female connector. The omni s are DC grounded for lightning protection. The 11dBi omni is available with 1 deg electrical downtilt which provides null fill and improved close-in coverage.
* 900 MHz ISM Band Applications
* Non Line of Sight Applications
* WISP Base Station Equipment
* 900MHz Omni Directional Antenna
* Available in 5, 6, 8 and 11dBi gain models
* 1degree electrical downtilt available on the 11dBi model
* UV Stabilized Fiberglass / Stainless Steel Construction
* Pole Diameter (OD): 1" (25mm)
* Operating Temp: -45oC ~ 70oC
* Rated Wind Velocity: 125 Mph (56 m/sec)
* VSWR 1.5:1 Bandwidth: 890-950MHz
* Vertical 3dB Beamwidth: 36o
* Dimensions: Diameter: ~1.5 ( 38 mm); Length: 24 (610 mm)
