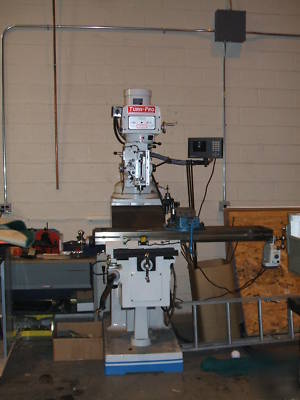

2006 turn-pro 10X54 vertical mill
2006 TURN-PRO VARIABLE SPEED MILL
Includes: R8 Spindle 2HP, Axis Power Feed, Anilam 550M 3 Axis Mill System Quill
* Variable Speed, 70 to 4200 RPM
* Precision 10" X 54" Hardened Ground Table
* Dynamically Balanced Head for Quiet Trouble Free Operation
* Hand Scraped Turret Column Ways
* Upper & Lower Surface of Saddle Laminated with Trucite-B for a Smooth Accurate & Wear Resistant Surface
* Certified Meehanite Casting Stress Relived to Provide a Rigid Machine Structure
* US Patented Ram Locking System
* Precision Hardened & Ground Ways
* Built-In Coolant Tank in Base
* One Shot Lubrication; Gravity Feed Lubricator for Spindle
* All Moveable Surfaces are Lockable
* Way Covers for Knee and Crossfeed
* Double Lock Devices on Knee, Saddle & Table Provide Superior Holding Power & Eliminate Possibility of Lateral Movement
The spindle is supported by Super Precision Class 7 Angular Contact Bearings which have been accurately measured, selected and preloaded then assembled in a temperature controlled environment to ensure accuracy and rigidity throughout the full RPM range. Head is extremely quiet with dynamically balanced pulleys and chrome plated motor shaft for smooth speed changes free of noise and vibration. The double nut arrangement utilized on the table and saddle substantially reduces backlash and can be adjusted quickly. Solid quill feed utilizes a one-piece pinion gear and shaft as well as a one-piece worm and wormshaft which provides strength, rigidity and less maintenance.
